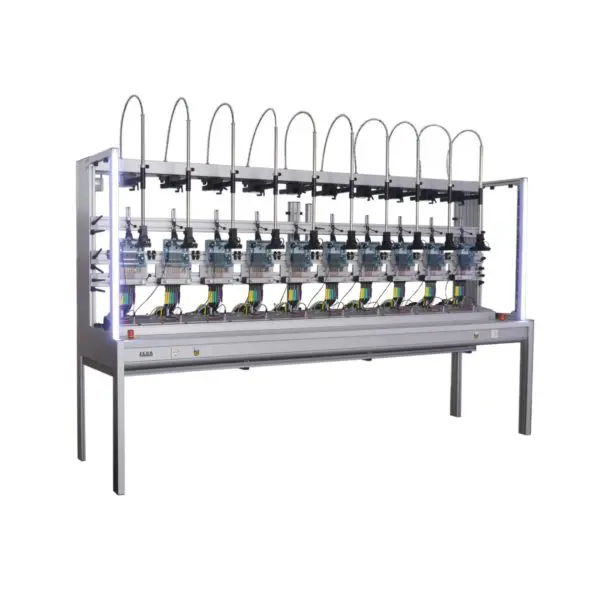

Multi-position test bench

Test bench with 5, 10, 20 or 40 test positions

Test bench with 5, 10, 20 or 40 test positions
Phases: 1 or 3

Phases

1

3

Main Functions
  • Single- or three-phase meter testing

Scope of Applications

  • Combined with a power source system e.g. MTS140 this test bench is used as a single-phase meter test system with 40 test positions.
  • Combined with a power source system e.g. MTS310 this test bench is used as a three-phase meter test system with 10 test positions.
  • Combined with a power source system e.g. MTS320 this test bench is used as a three-phase meter test system with 20 test positions.
  • Combined with a power source system e.g. MTS340 this test bench is used as a three-phase meter test system with 40 test positions.

Specials

  • Extendable by MTS components
  • See detailed description for variants
