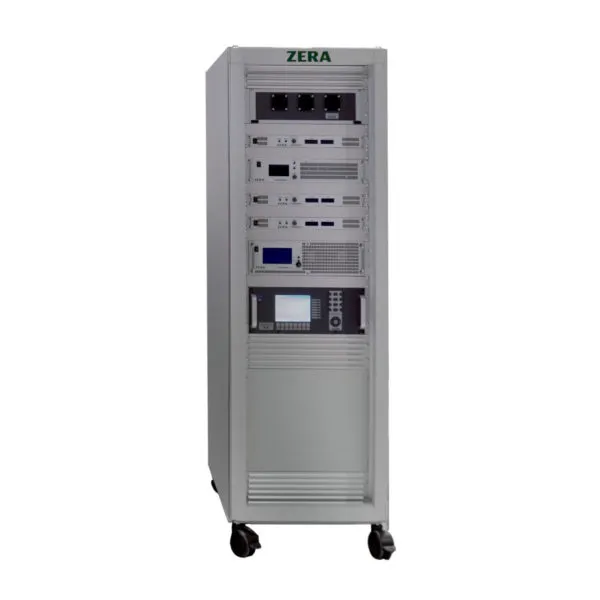

MTS750

Source System
Accuracy class: 0.040
Current generation up to 600 A (DC)
Voltage generation up to 1000 V (DC)

Phases	1
Accuracy Class	0.040
Voltage Generation Max.	1000 V (DC)
Current Generation Max.	600 A (DC)
Main Functions	Generation of test quantities
Components	COM3003, Reference Meter CR2020, basic interface SCG750, Standard Current Generator DC SCG8, Standard Current Generator DC SCG80, Standard Current Generator DC SVG1200, Standard Voltage Generator DC SVG150, Standard Voltage Generator for auxiliary voltages DC Control cabinet Fan unit with regulation Main switch
Scope of Application	Application in stationary ZERA Meter Test Systems
Specials	FG-Middleware (software) for communication between WinSAM and individual hardware components PLC for control of the voltage and current circuit as well as a warning lamp Test position can be adapted variably to the meter under test on request Testing of AC and DC quantities
