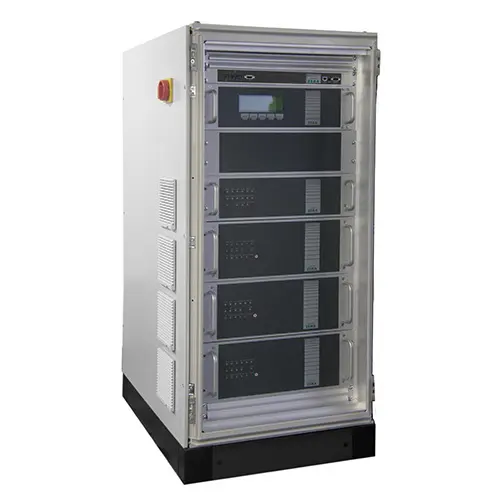

MTS320

Source System
Accuracy class: 0.02
Output power U: 3x 500 VA
Output power I: 3x 2000 VA

Phases	3
Accuracy Class	0.02
Output Power U	3x 500 VA
Voltage Generation Max.	320 V (AC) 320 V (DC)
Ausgangsleistung I
Current Generation Max.	160 A (AC)
Main Functions	Generation of test quantities for up to 20 test positions
Components	EPZ303, Reference Meter FG301, Frequency Generator VI221, current amplifier 3x VU221, voltage amplifier Control cabinet Fan unit with regulation Main switch
Scope of Application	Application in stationary ZERA Meter Test Systems
Specials	Accuracy class 0.005 with COM5003 (optional) Accuracy class 0.008 with COM3003 (optional) Output power I: 1x 2800 VA at max. 120 A with VI202 (optional)
