Additel 917
Pneumatic Pressure Test Pump
- Portable, only 5.7 lb
- Great stability and high resolution
- Minimal maintenance
- Hand-tight quick connectors

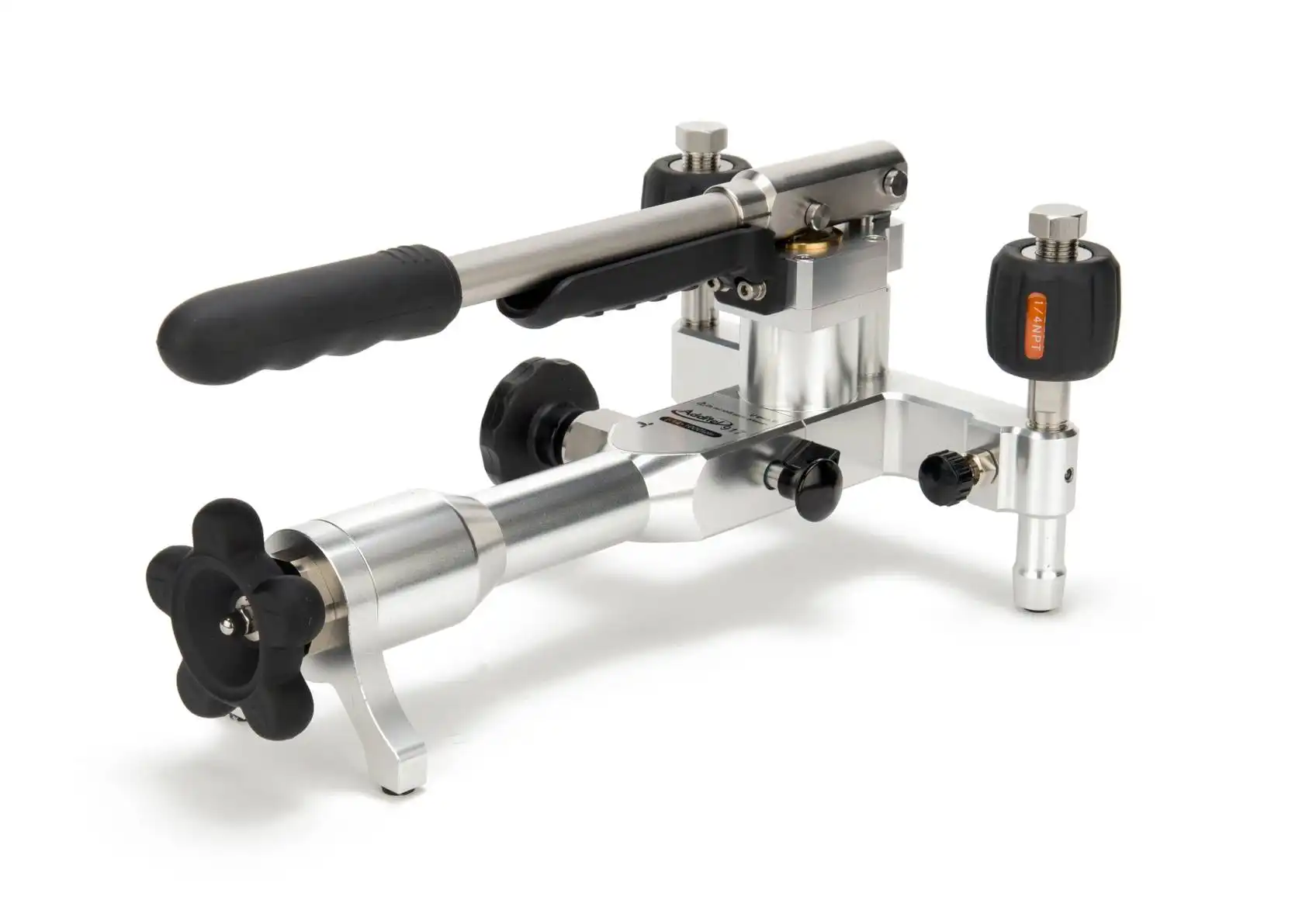

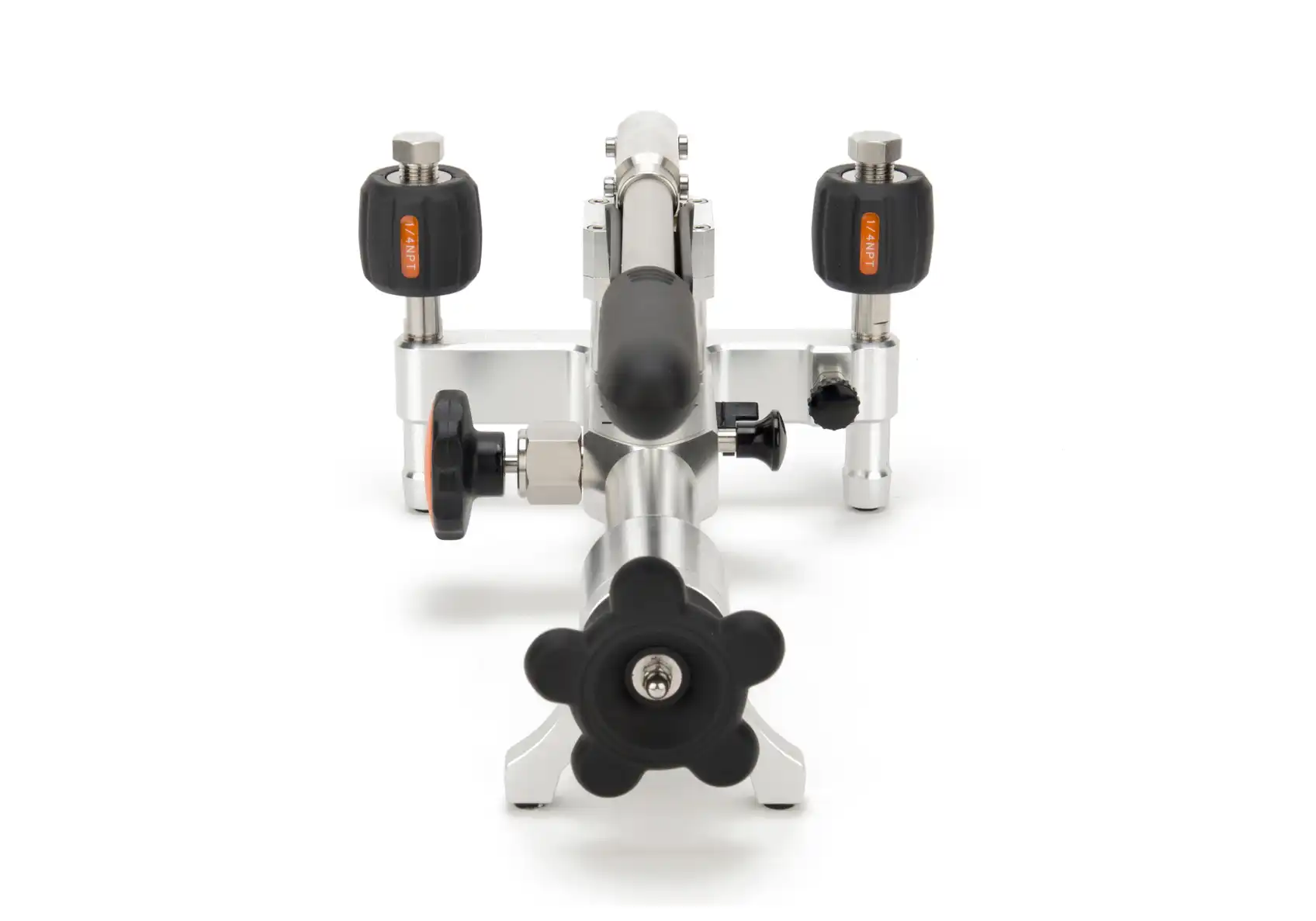

The 917 Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95% vacuum to 1,000psi (70bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 10 Pa (0.1 mbar). A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 917 is an ideal comparison test pump for pressure instruments calibration.
Portable: Only 5.7 lb (2.6 kg)
High Resolution
10 Pa (0.1 mbar)
High-quality screw press for fine pressure adjustment
Great Stability
A specially designed shut-off valve makes the
pressure as stable as possible during calibration.
Durable and Minimal Maintenance
Built-in gas-liquid isolator protects the pump from
moisture and dirt.
Easy-to-use
Pressurized to desired pressure by the lever directly
and make fine adjustment. No high-pressurized valve
needed.
Hand-tight Quick Connectors
Allows easy connecting and disconnecting to the test
pump without the need for PTFE tape or wrenches.
| Specifications | |
|---|---|
| Media | Air |
| Generated Pressure Range | 95% vacuum to 1000 psi (70 bar) positive pressure |
| Adjustment Resolution | 10 Pa (0.1 mbar). |
| Material | Ram/adapters: SS |
| Body: SS, aluminum | |
| Seals: Buna-N, PTFE, Copper Alloy | |
| Piston Volume | 27 ml (1.6 in3 ) |

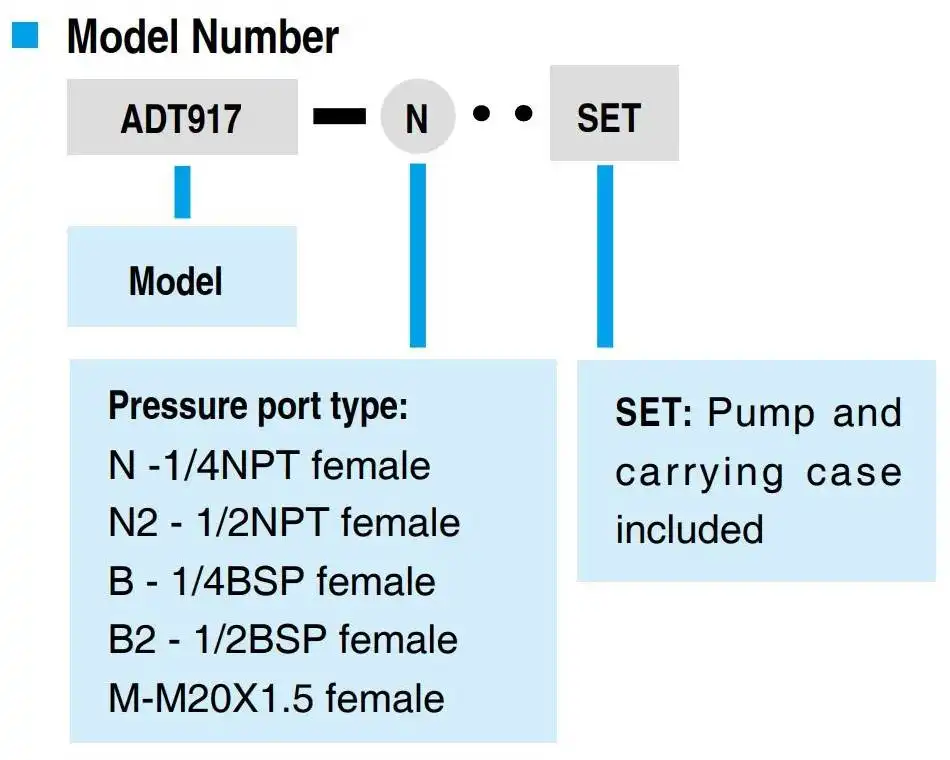

| Connection | Hand-tight connectors for both test gauge and reference gauge. 1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female |
| Dimensions | Height: 5.5'' (140 mm) |
| Base: 12.4'' (315 mm) x 7.8'' (198 mm) | |
| Weight | 5.7 lb (2.6 kg) |
| Warranty | 1 year |
| Accessories Included |
|---|
| O-ring: 20 pcs |
| Manual: 1 pc |
| Carrying Case (917-X-SET models only) |
| Optional Accessories | |
|---|---|
| Model Number | Description |
| ADT102 | Adapters and fittings, 1/4NPT male to various male and female connection (25 pcs). |
| ADT103 | Adapters and fittings, 1/4NPT (1/2NPT, 1/4BSP, 1/2BSP, or M20X1.5) male to various female hand-tight quick connectors (10 pcs). |
| ADT100-HTK-8K | Hose test kit, 5 feet flexible hose, 8,000 psi, user selectable male (1/4NPT, 1/2NPT, 1/4BSP, 1/2BSP, M20) to user selectable female hand tight quick connector. |
| 9904-917 | Carrying Case for one ADT916A pump and two ADT681 gauges or ADT672 calibrators |
| ADT917-MK | Maintenance kit for Additel 917 pump |
| 9240 | Differential pressure gauge holder |
| Note: For oil free applications contact Additel. | |
