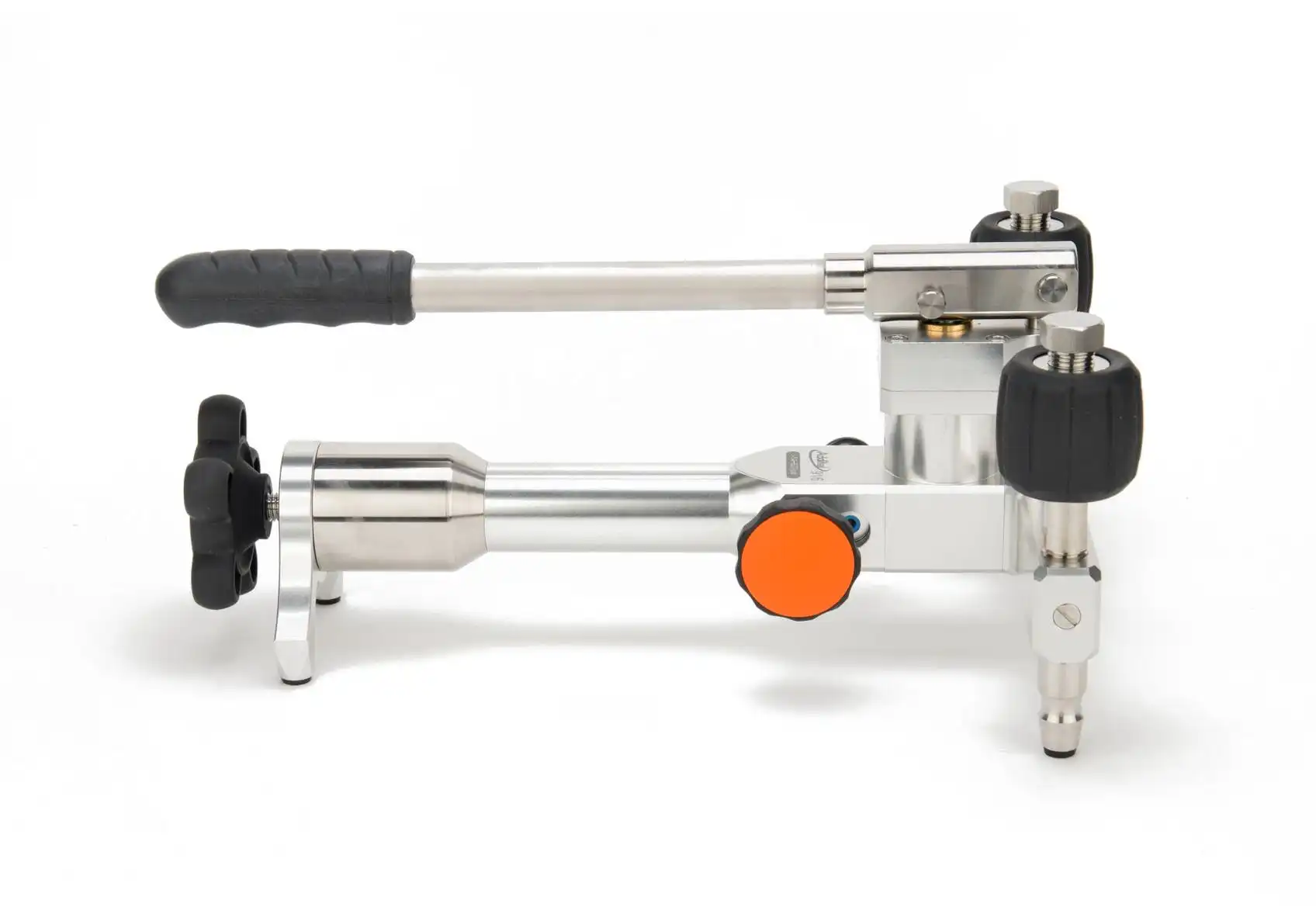

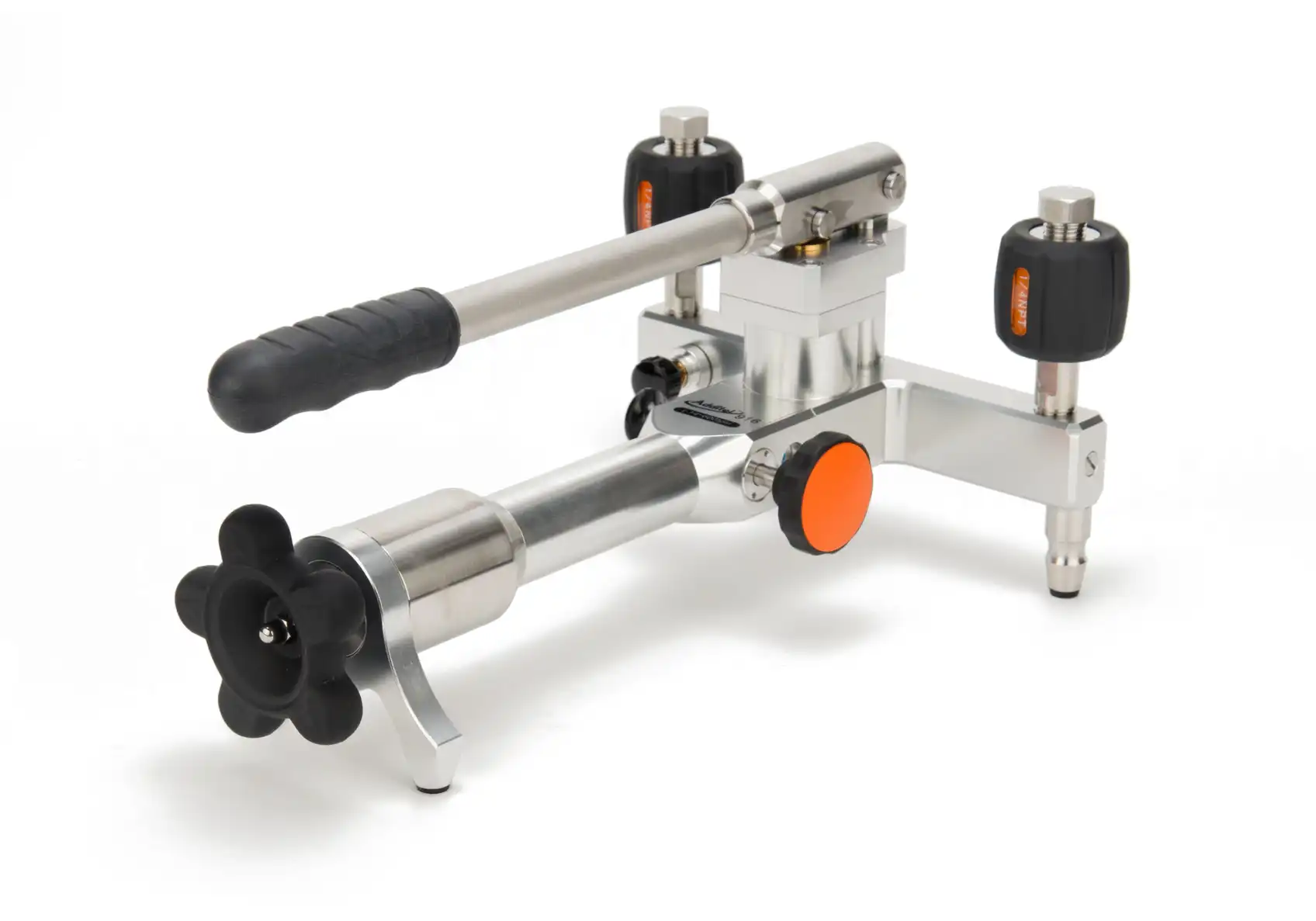

The 916A Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95% vacuum to 600psi (40bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 10 Pa (0.1 mbar). A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 916A is an ideal comparison test pump for pressure instruments calibration.

Portable: Only 6.2 lb (2.8 kg)

Adjustment Resolution
0.1 Pa (0.001 mbar)
High-quality screw press for fine pressure adjustment

Great Stability
Isothermal chamber: the pressure chamber is
insulated to reduce the influence from environmental
temperature changes
Specially designed bellows minimize leakage to
guarantee excellent stability
Shut-off valve closes the air in the isothermal chamber
during calibration

Durable and Minimal Maintenance
Built-in gas-liquid isolator protects the pump from
moisture and dirt

Easy-to-use

Hand-tight Quick Connectors
Allows easy connecting and disconnecting to the test
pump without the need for PTFE tape or wrenches
