Additel 878

Additel 878

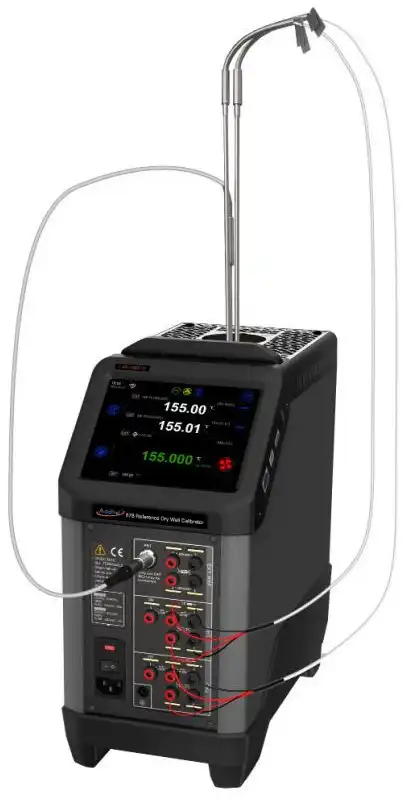

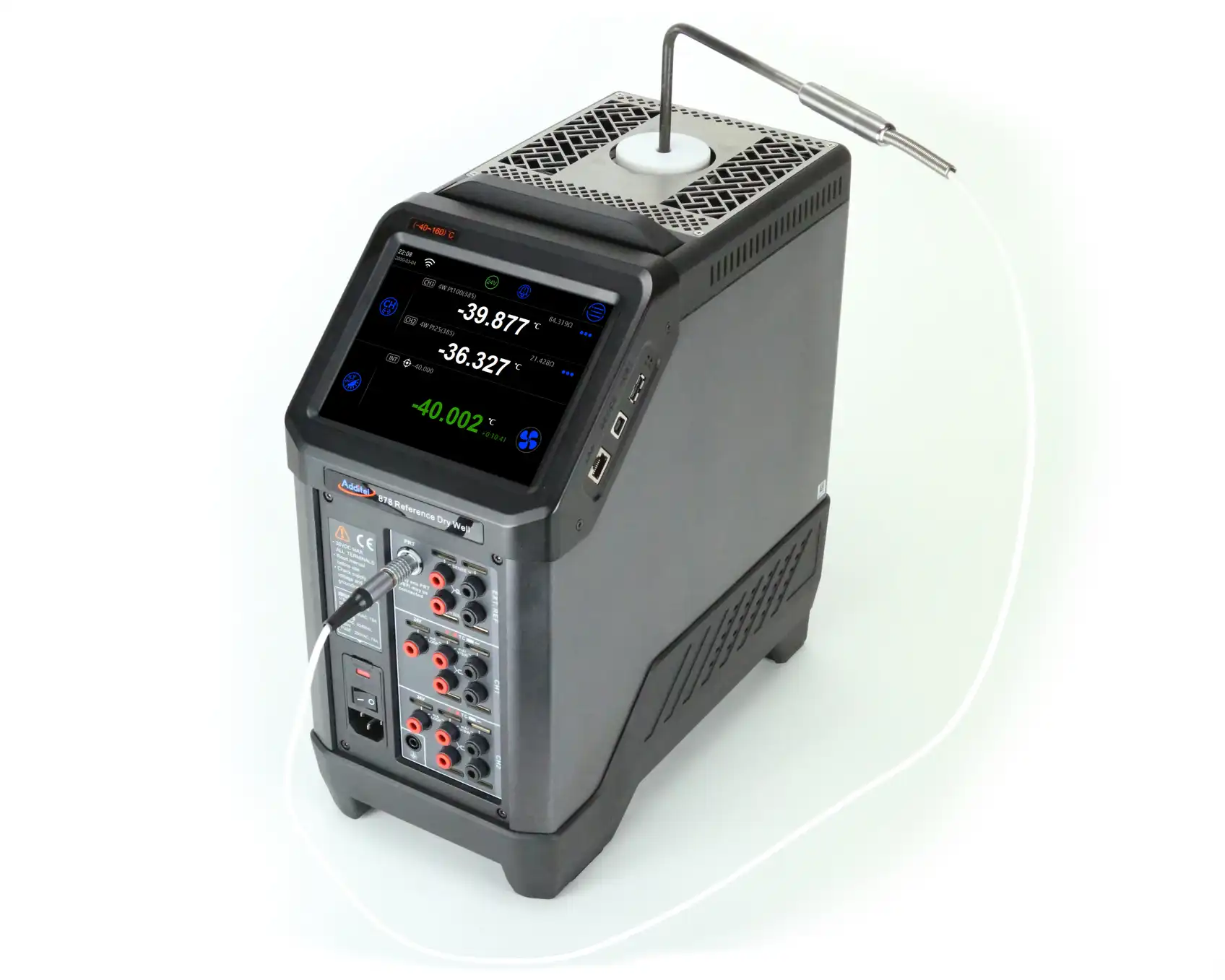

Reference Dry Well Calibrator

Reference level performance in accuracy, stability and uniformity
Quick to temperature

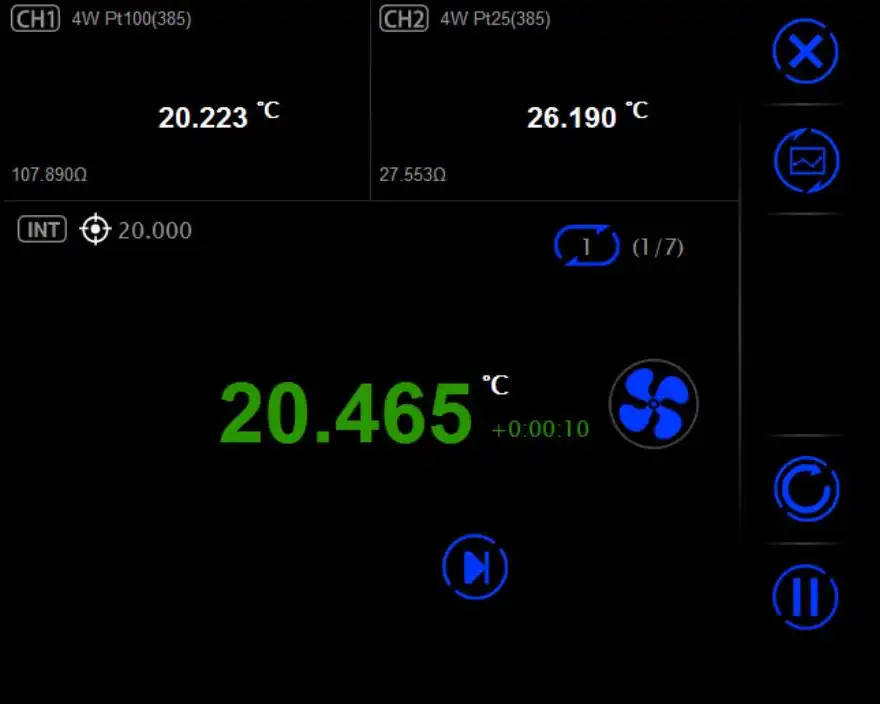

Two-channel readout measures RTDs and TCs, and provides task documentation

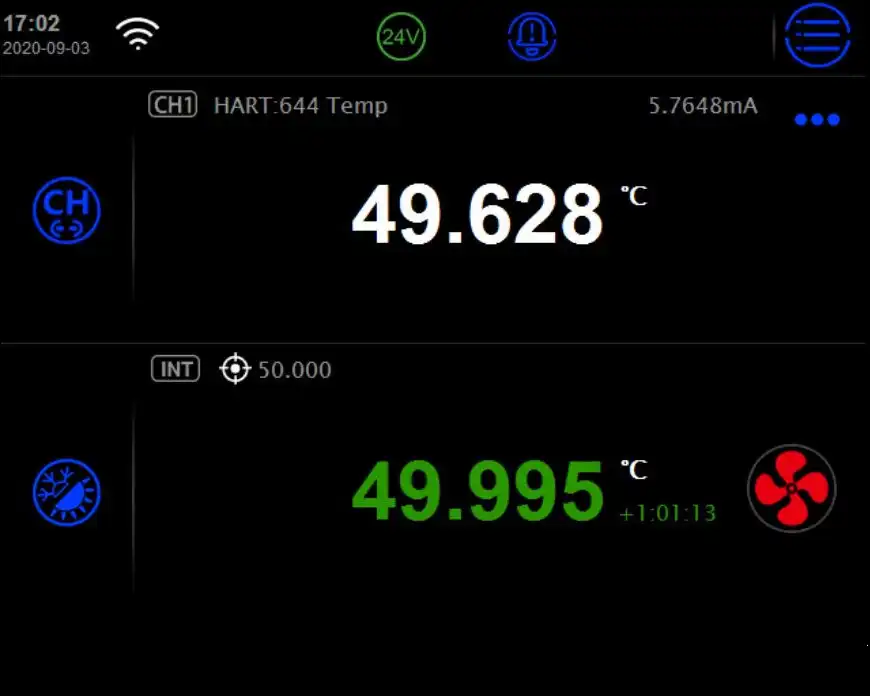

Full HART communicator (PC Option)

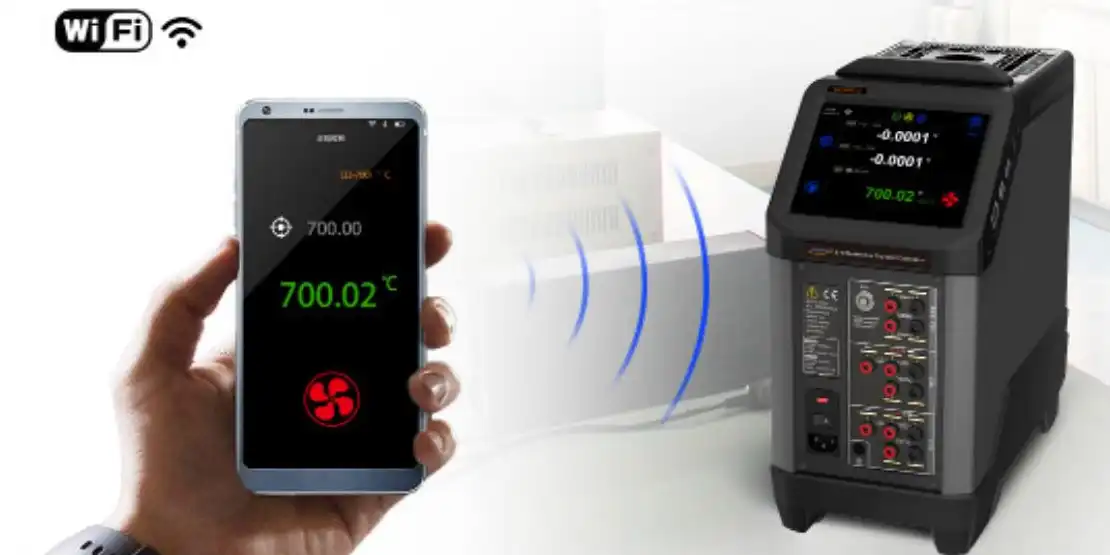

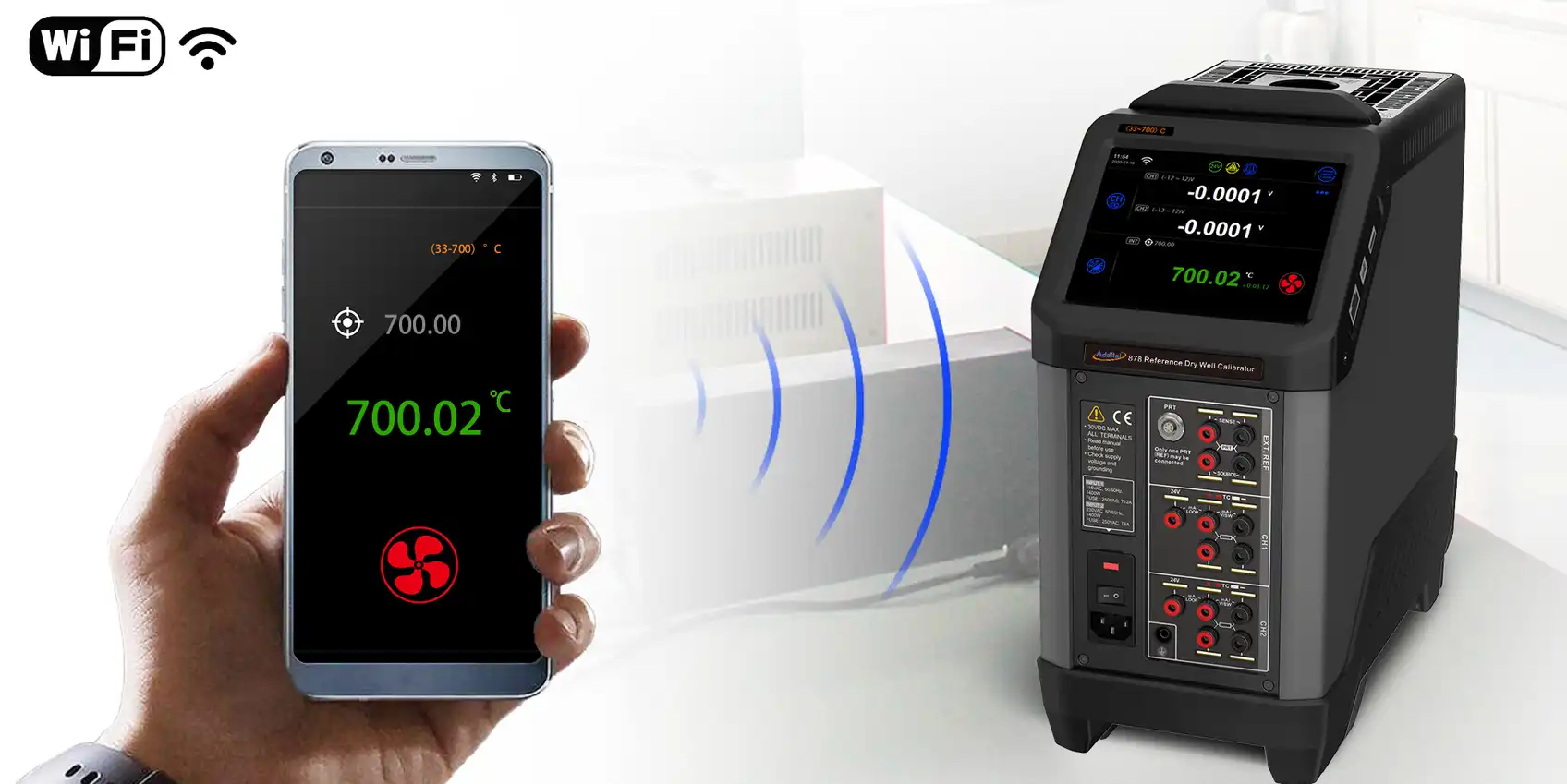

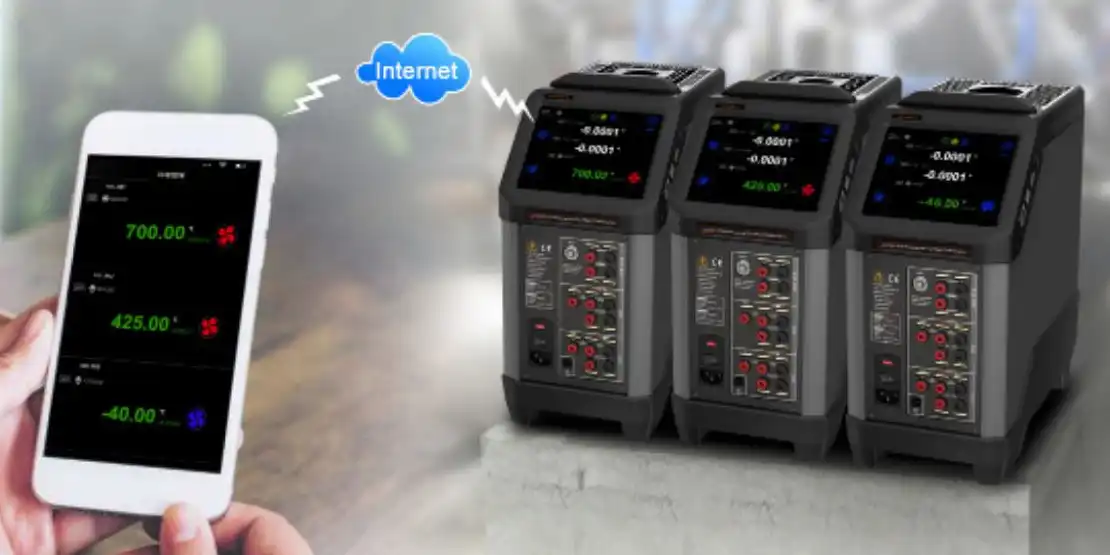

Wi-Fi and Bluetooth capable
Color touch screen display
Quick-Push connectors (PC Option)
Set point control by reference
Self-calibration feature

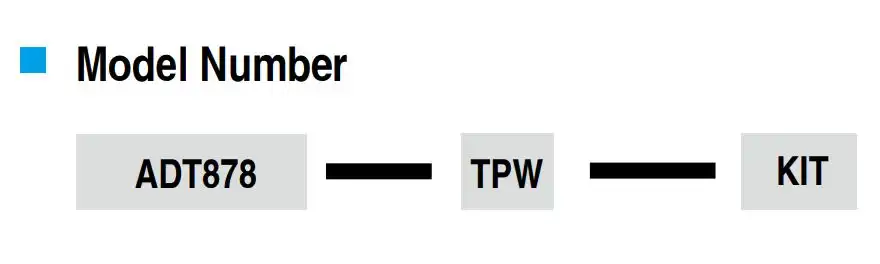

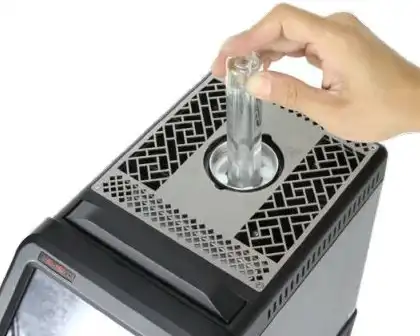

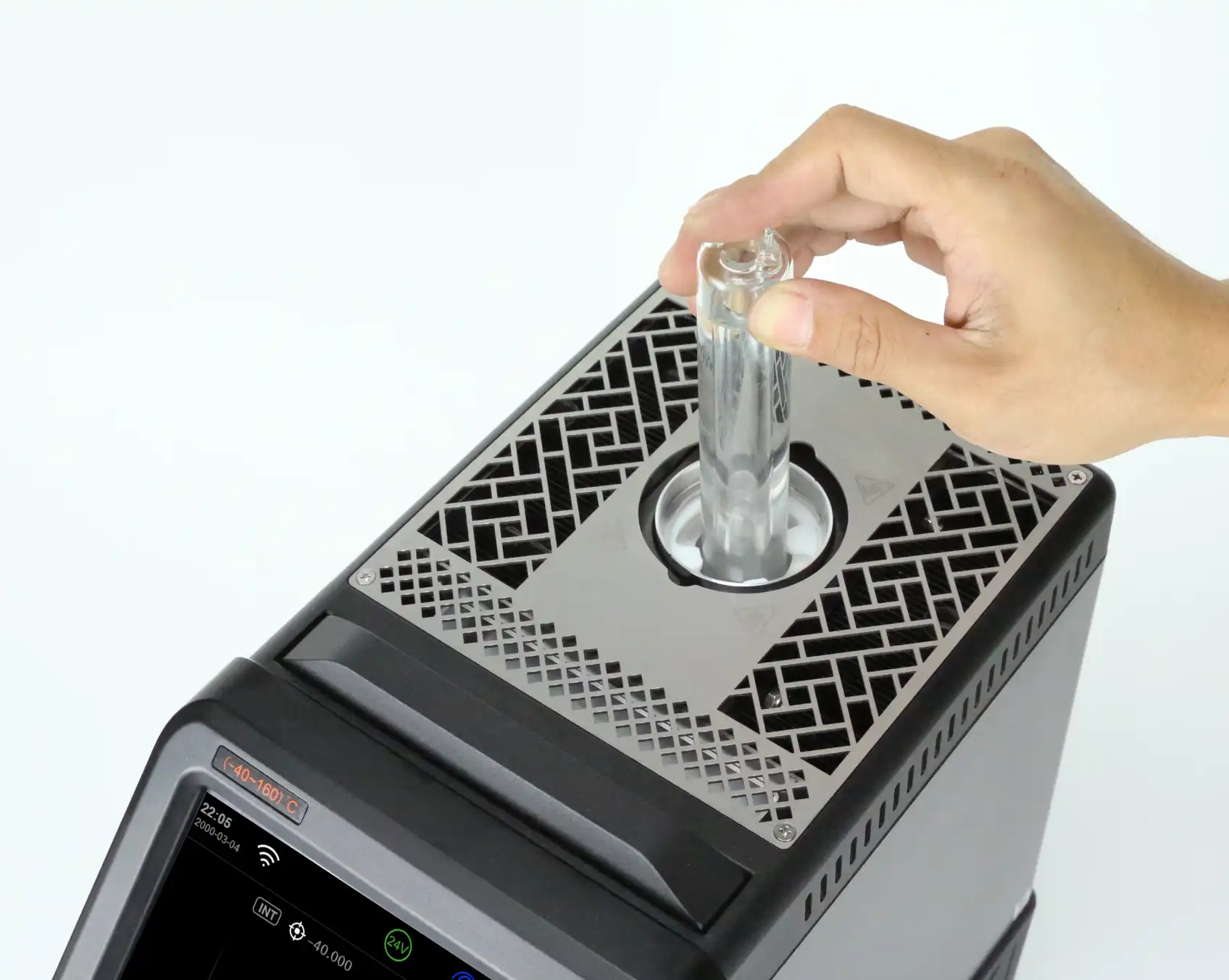

Optional TPW kit for built in automatic realization (ADT878-160 only)
Built in automatic annealing feature (ADT878-700 only)

We are taking temperature calibration to the next level with the Additel 878 Reference Dry Well Calibrators. If you are looking for the best dry well on the market, then look no further! Additel’s commitment to continuous improvement, quality and time saving features are on full display in the ADT878 series. With three models to choose from, ranging from -40 to 700°C, you will find the perfect fit for your calibration needs. The Process Calibrator option adds an external reference input, a two-channel readout for UUT’s and a full complement of capabilities to help with everything from measuring temperature sensors, to calibrating thermocouples, self-calibrating the Reference Well and configuring HART transmitters. Each unit comes standard with a large touchscreen display, dual-zone control and Additel’s commitment to the best customer service in the industry. We are certain that you will be blown away by the outstanding performance of these game-changing Reference Dry Wells!

Process Calibrator Option

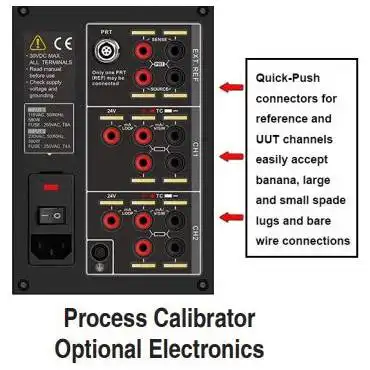

Each model can be purchased with our Process Calibrator (PC) option. This option combines the many features found in a fully functional HART documenting process calibrator with the reference grade dry well. This option includes the ability to measure a reference PRT, with virtually any connection type, and two device under test channels which can measure, mA, voltage, switch, RTD or thermocouple. In addition to these measurement functions, this calibrator has full documenting capability of creating tasks, saving as found and as left results, as well as communication with HARTsmart transmitters. The process calibrator option also has an on board full HART communicator which allows users to read, configure and calibrate HART transmitters. The snap shot feature allows you to capture all information displayed on the screen with the push of a button. This optional add-on allows for data logging of all channels on an auto step function. Using a reference PRT, you can also control to the dry well set point using either the internal sensor or an external reference PRT.

Self Calibration

We believe using an external reference probe as your standard is the best way to perform your temperature calibration. But we also recognize this method is not always necessary or convenient and depending on the application, using the internal control sensor would be preferred. Traditionally, the internal control sensor has a wide accuracy which can largely be contributed to its long-term drift. We’ve built in a self-calibration feature allowing you to run an automated calibration of the internal control sensor using your external reference. With literally a few selections the calibration will run automatically giving you a fresh, traceable calibration of the control sensor which will improve its accuracy as you will not have to account for its long term drift when used as the reference.

Automation Features

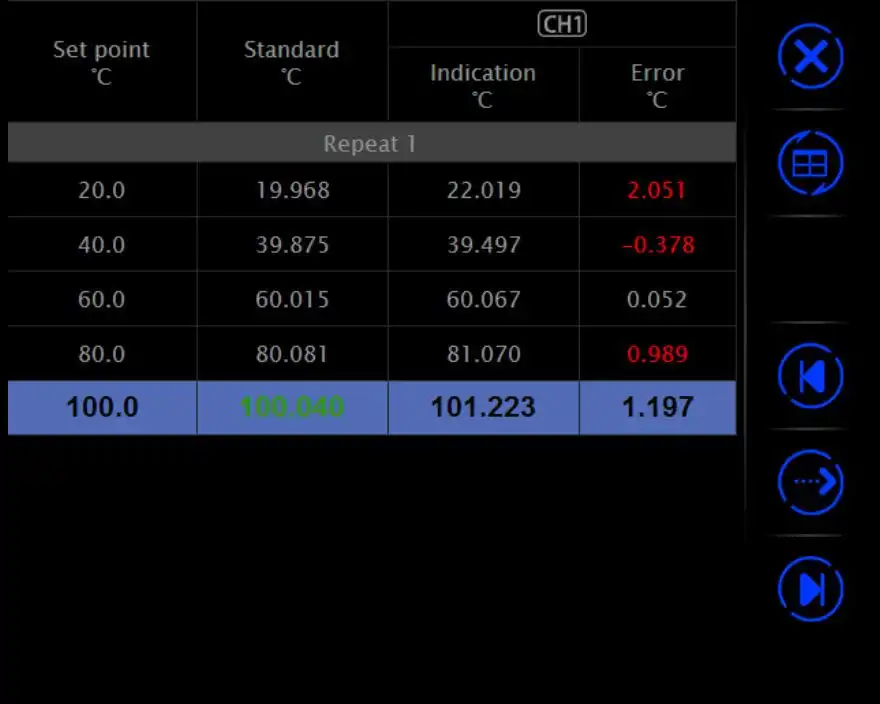

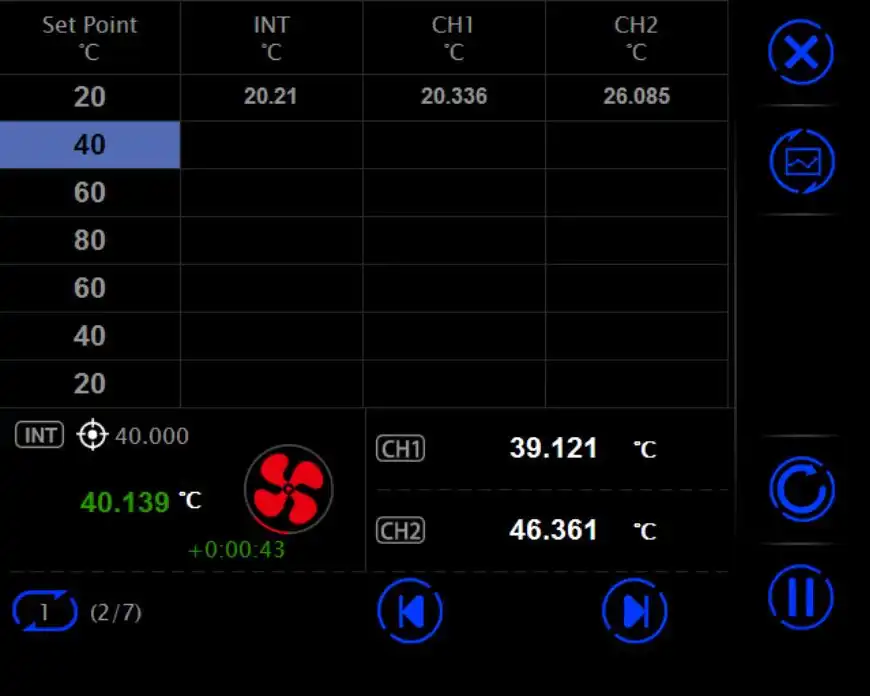

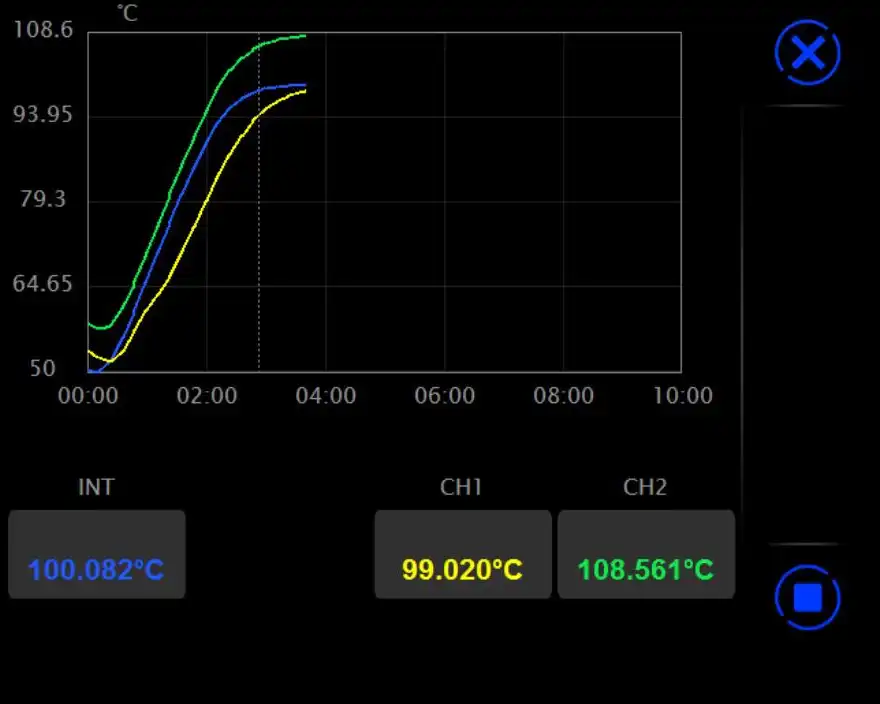

Traditionally, dry wells were simply a stable heat source. To enhance the usability of our Reference Dry Wells, we've added automation features enabling you to utilize these amazing devices as a highly stable heat source, triple point of water maintenance apparatus, and annealing furnace. Combined with the ADT878-TPW-KIT, the ADT878-160 Reference Dry Well can be used to automatically realize and maintain a triple point of water cell. Traditional methods take time and practice to realize the triple point of water. Additel has now simplified this process with an automatic TPW realization feature. Simply insert the cell and PRT into the Reference Dry Well and run the procedure. The automation in the firmware will alert when the cell is super cooled. Remove the cell and give it a shake and now you can maintain the triple point in the reference well. This is very useful to check the drift of your PRT. For more information, please see our ADT878-TPW-KIT data sheet. When you purchase our 700°C Reference Dry Well, you will find our automatic annealing feature used to anneal PRTs. We have preconfigured annealing procedures that set the temperature annealing time and cool down rate. This feature, also lets you create your own annealing procedures.

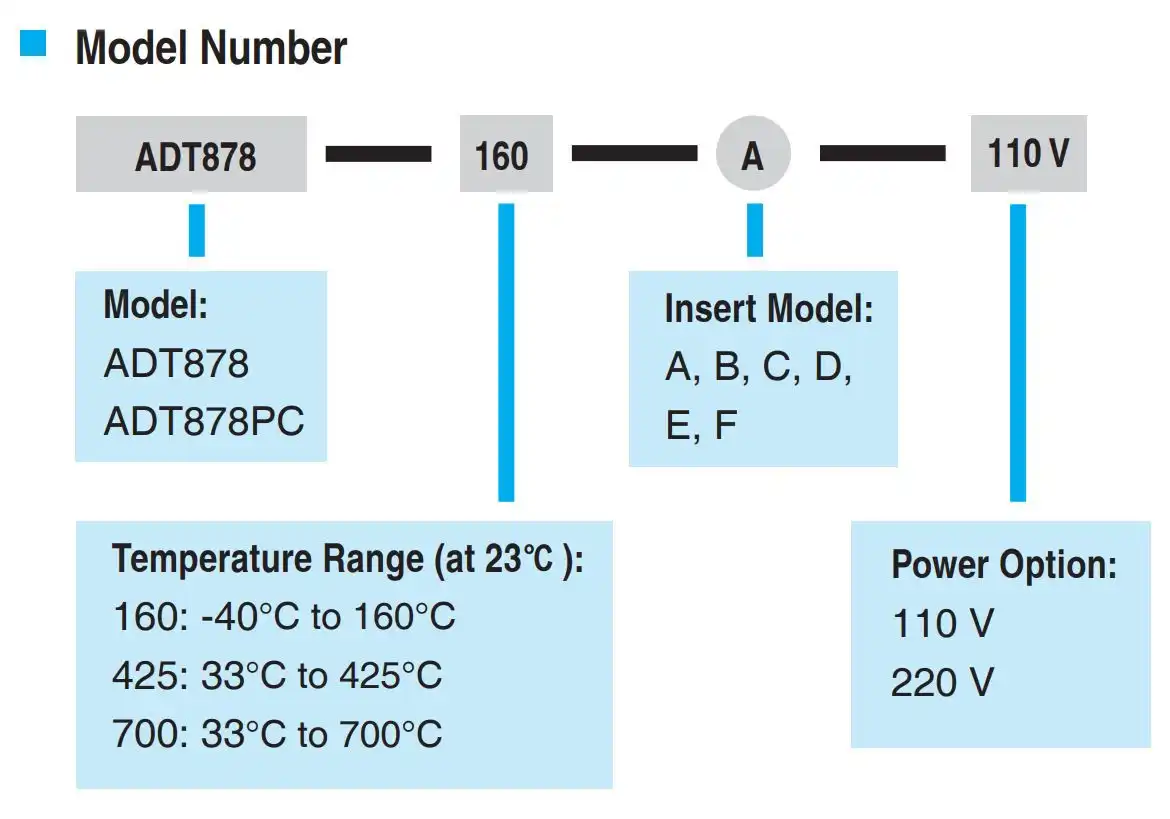

Reference Dry Well Specifications
Specification	878-160	878-425	878-700
Temperature Range at 23°C	-40°C to 160°C	33°C to 425°C	33°C to 700°C
Display Accuracy	±0.1°C at Full Range	±0.2°C at Full Range	±0.20°C at 33°C
			±0.20°C at 425°C
			±0.25°C at 660°C
Stability (30 min)	±0.005°C at Full Range	±0.005°C at 100°C	±0.005°C at 100°C
		±0.010°C at 225°C	±0.015°C at 425°C
		±0.015°C at 425°C	±0.030°C at 700°C
Axial Uniformity at 60 mm (2.4 in)	±0.025°C at -40°C	±0.10°C at 100°C	±0.10°C at 100°C
	±0.020°C at 0°C	±0.15°C at 225°C	±0.25°C at 425°C
	±0.050°C at 160°C	±0.25°C at 425°C	±0.40°C at 700°C
Axial Uniformity at 80 mm (3.15 in)	±0.050°C at -40°C	±0.15°C at 100°C	±0.15°C at 100°C
	±0.040°C at 0°C	±0.20°C at 225°C	±0.30°C at 425°C
	±0.050°C at 160°C	±0.30°C at 425°C	±0.60°C at 700°C
Radial Uniformity	±0.01°C at Full Range	±0.025°C at 100°C	±0.025°C at 100°C
		±0.030°C at 225°C	±0.040°C at 425°C
		±0.040°C at 425°C	±0.060°C at 700°C
Loading Effect	±0.08°C (Display Sensor)	±0.05°C (Display Sensor)	±0.02°C at 100°C
			±0.05°C at 425°C
			±0.15°C at 700°C
	±0.010°C (External Sensor)	±0.01°C (External Sensor)	±0.01°C at 100°C
			±0.02°C at 425°C
			±0.03°C at 700°C
Hysteresis (Display Sensor)	0.025°C	0.04°C	0.07°C
Environmental Conditions	8°C to 38°C guaranteed accuracy
Environmental Conditions	0°C to 50°C, 0% to 90% RH non-condensing
Storage Conditions	-20°C to 60°C
IP Rating	IP20
Immersion Depth	160 mm (6.30 in)	193 mm (7.60 in)

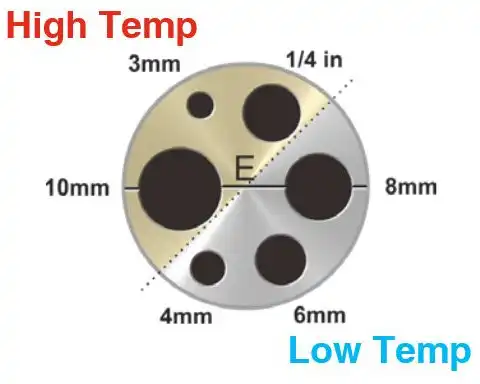

Insert OD	31.9 mm (1.26 in)	30.8 mm (1.21 in)
Heating Time	4 min: -40°C to 23°C	15 min: 23°C to 425°C	25 min: 23°C to 700°C
Heating Time	10 min: 23°C to 160°C	15 min: 23°C to 425°C	25 min: 23°C to 700°C
Cooling Time	8 min: 160°C to 23°C	24 min: 425°C to 100°C	30 min: 700°C to 100°C
Cooling Time	15 min: 23°C to -40°C	15 min: 100°C to 50°C	15 min: 100°C to 50°C
Typical Time to Stability	10 min
Resolution	0.001°C
Units	°C, °F, and K
Display	6.5 in (165 mm) color touch screen
Size (H x W x D)	170 x 345 x 330 mm (6.69 x 13.58 x 13.0 in)
Weight	11.2 kg (24.7 lbs)	9.7 kg (21.4 lbs)
Power Requirements	90-254 VAC, 45-65 Hz, 580 W	90-25 VAC, 45-65 Hz, 1400 W
Communication	USB A, USB B, RJ45, WiFi, Bluetooth
Localization	English, Chinese, Japanese, Russian, German, French, Italian, and Spanish
Warranty	1 year

Input Specifications (Process Calibrator [PC] Option)
Specification	Description
Readout Accuracy for 100 ohm PRT (Probe Accuracy Not Included)	±0.005°C at -40°C
	±0.006°C at 0°C
	±0.008°C at 50°C
	±0.009°C at 100°C
	±0.011°C at 160°C
	±0.015°C at 300°C
	±0.019°C at 425°C
	±0.026°C at 660°C
	±0.028°C at 700°C
Readout Resolution	0.1 mΩ
Reference Resistance Temperature Measurement Range	-200°C to 926°C
Reference Resistance Accuracy	0Ω to 50Ω: ±1.25mΩ
Reference Resistance Accuracy	50Ω to 400Ω: ±0.0025% RD
Reference Characterizations	ITS-90, CVD, IEC-751
Reference Measurement Capability	4-wire PRT
Reference Probe Connection	6-pin lemo smart connector and Quick-Push connectors to accept banana, mini-banana, large & small spade lug and bare wire connections
RTD Channels	2 channels. Both accept 2, 3, or 4-wire RTDs
RTD Measurement Accuracy (excl sensor)	0Ω - 25Ω: ±0.002Ω
	25Ω - 400Ω: 0.004% RD
	400Ω - 4kΩ: 0.005% RD
RTD Measurement Resolution	0.1mΩ
RTD Measurement Resistance Range	0Ω to 4KΩ
RTD Characterizations	PT10, PT25, PT50, PT100, PT200, PT500, PT1000, CU10, CU50, CU100, NI100, NI120
RTD Connection	Quick-Push connectors accept banana, mini-banana, large & small spade lug and bare wire connections.
TC Channel	2
TC Measurement Channels	Accepting S, R, K, B, N, E, J, T, C, D, G, L, and U
TC Range	-75 mV to 75 mV
TC Resolution	0.1µV
TC Voltage Accuracy	0.01% RD + 5 µV
Internal CJC Accuracy	±0.2°C (ambient from 0°C to 50°C)
Current Range	-30 mA to 30 mA
Current Accuracy	0.01% RD + 2 µA
Current Resolution	0.1 µA, Input Impedance: < 10Ω
Voltage Range	-12 V to 12 V and –30 V to 30 V
Voltage Accuracy	±0.01% RD + 0.6 mV
Voltage Resolution	0.1 mV; Input impedance: >1MΩ
Switch Test	Mechanical or Electrical
DC 24V Output	24 V ±0.5 V, MAX 60 mA
Hart Communicator	Read, configure and calibrate HART devices - DD files updated periodically. Optional - (order ADT875PC)
Documentation	Up to 1,000 tasks which store up to 10 results each containing as found and as left data. Snap shot feature allows for screen captures. Records auto step and ramp functions.
Temperature Coefficient (0°C to 13°C and 33°C to 50°C)	ADT878 (PC)-160: ±0.005°C/°C
	ADT878 (PC)-425/700: ±0.005°C/°C
	Ref Readout: ±1 ppm FS/°C
	RTD Readouts: ±1 ppm FS/°C
	TC Readouts: ±5 ppm FS/°C
	Current: ±5 ppm FS/°C
	Voltage: ±5 ppm FS/°C

TC Measurement Specification and Calculation (Process Calibrator [PC] Option)
TC Type	Temperature (°C)	Error (°C)[1]
B	250	±1.99
	300	±1.65
	425	±1.18
	660	±0.81
	700	±0.77
	1768	±0.56
K	-200	±0.29
	-40	±0.13
	0	±0.13
	160	±0.14
	300	±0.15
	425	±0.16
	660	±0.18
	700	±0.19
	1000	±0.31
E	-200	±0.16
	-40	±0.09
	0	±0.09
	160	±0.08
	300	±0.09
	425	±0.10
	660	±0.12
	700	±0.13
	1000	±0.17
J	-210	±0.22
	-40	±0.10
	0	±0.10
	160	±0.11
	300	±0.12
	425	±0.13
	660	±0.14
	700	±0.14
	1000	±0.21
T	-200	±0.28
	-40	±0.14
	0	±0.13
	160	±0.11
	300	±0.11
	400	±0.11
N	-200	±0.46
	-40	±0.20
	0	±0.19
	160	±0.17
	300	±0.17
	425	±0.17
	660	±0.19
	700	±0.19
	1000	±0.27
S	-50	±1.25
	-40	±1.17
	0	±0.93
	160	±0.63
	300	±0.57
	425	±0.55
	660	±0.54
	700	±0.53
	1768	±0.66
R	-50	±1.33
	-40	±1.23
	0	±0.95
	160	±0.61
	300	±0.54
	425	±0.51
	660	±0.48
	700	±0.48
	1768	±0.58
[1] Excluding cold junction compensation errors.

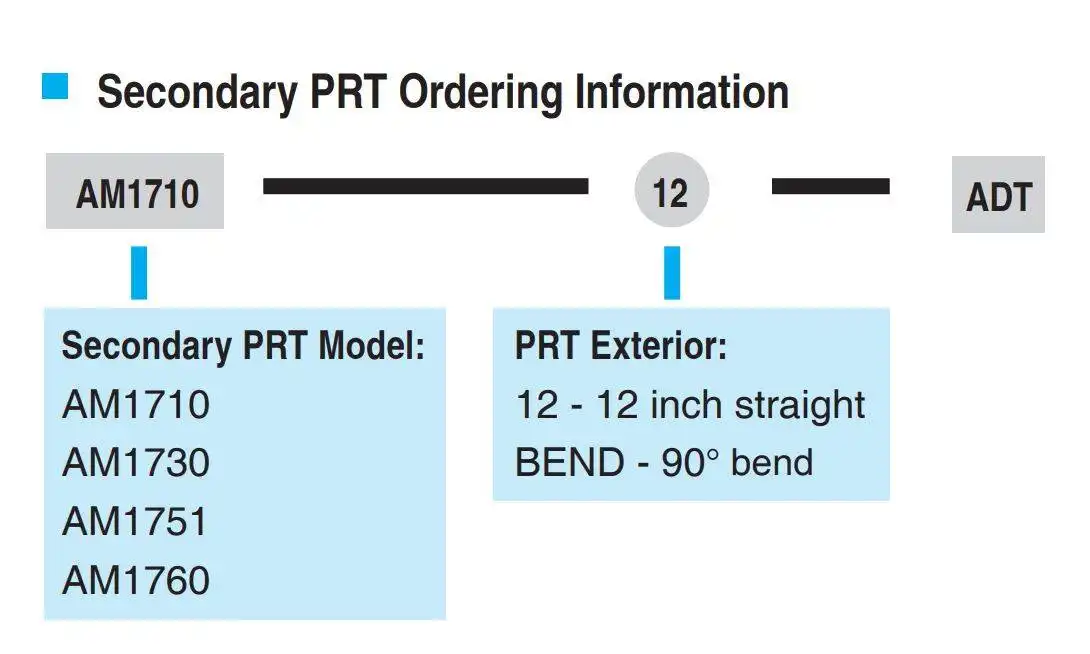

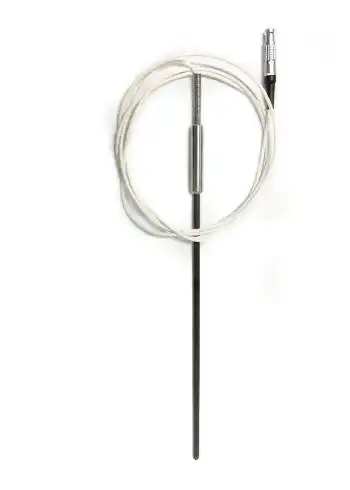

Secondary PRT Information
Specification	AM1710 Series	AM1730 Series	AM1751 Series	AM1760 Series
Temperature Range [3]	-60°C to 160°C	-200°C to 420°C	-200°C to 670°C	-200°C to 670°C
Resistance at 0°C	Nominal 100Ω
Temperature Coefficient	0.003925 Ω / Ω / °C
Calibrated Accuracy (k=2)[2][3]	±0.025°C at -40°C	±0.025°C at -40°C	±0.025°C at -40°C	±0.010°C at -196°C
	±0.015°C at 0.01°C	±0.015°C at 0.01°C	±0.015°C at 0.01°C	±0.006°C at 0.01°C
	±0.025°C at 160°C	±0.035°C at 420°C	±0.035°C at 420°C	±0.015°C at 420°C
			±0.05°C at 661°C	±0.025°C at 661°C
Drift	±0.01°C at TPW after 100 hours at 160°C	±0.01°C at TPW after 100 hours at 420°C	±0.01°C at TPW after 100 hours at 661°C	±0.004°C at TPW after 100 hours at 661°C
Short Term Stability	±0.007°C			±0.002°C
Thermal Shock	±0.005°C after (10) thermal cycles from minimum to maximum temperatures			±0.002°C after (10) thermal cycles from minimum to maximum temperatures
Hysteresis	<=0.005°C			<=0.001°C
Self-heating	50 mW/°C			0.0015°C at 0.5mA
Response Time	9 seconds for 63% response to step change in water moving at 3 feet per second
Measurement Current	0.5 mA or 1 mA
Sensor Length	32 mm			42 mm
Sensor Location	5 mm from tip
Insulation Resistance	>1000 MΩ at room temperature
Sheath Material	Stainless Steel	Inconeltm
Dimension	AM1710-12-ADT	AM1730-12-ADT	AM1751-12-ADT	AM1760-12-ADT
	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)
	AM1710-BEND-ADT	AM1730-BEND-ADT	AM1751-BEND-ADT	AM1760-BEND-ADT
	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 7.4 inch (190 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end
External Leads	Teflon™–insulated copper wire, 4 leads, 0.8 meters
Handle Dimension	15 mm (OD) x 65 mm (L)
Handle Temperature Range[1]	-50°C to 160°C	-50°C to 180°C
Calibration	NIST traceable calibration with data included. Accredited calibration available per request.
[1] Handle temperatures outside this range will cause damage to the probe.
[2] Includes calibration and 100 hour drift.
[3] Probe calibration ranges may differ from probe temperature ranges (see Calibrated Accuracy for calibration ranges).
*PRT Information from www.accumac.com

Specifications
Specification	Display
Uncertainty	<0.0005°C [1]
Immersion depth/ID	115 mm X 8 mm
External Dimensions	160 mm X 25 mm
Cell material	Borosilicate Glass
Realization time	20 mins
Estimated working time	2 hours
Recommended thermal Fluid	Ethanol
Warranty	1 year

Secondary PRT Information
Specification	AM1710 Series	AM1730 Series	AM1751 Series	AM1760 Series
Temperature Range [3]	-60°C to 160°C	-200°C to 420°C	-200°C to 670°C	-200°C to 670°C
Resistance at 0°C	Nominal 100Ω
Temperature Coefficient	0.003925 Ω / Ω / °C
Calibrated Accuracy (k=2)[2][3]	±0.025°C at -40°C	±0.025°C at -40°C	±0.025°C at -40°C	±0.010°C at -196°C
	±0.015°C at 0.01°C	±0.015°C at 0.01°C	±0.015°C at 0.01°C	±0.006°C at 0.01°C
	±0.025°C at 160°C	±0.035°C at 420°C	±0.035°C at 420°C	±0.015°C at 420°C
			±0.05°C at 661°C	±0.025°C at 661°C
Drift	±0.01°C at TPW after 100 hours at 160°C	±0.01°C at TPW after 100 hours at 420°C	±0.01°C at TPW after 100 hours at 661°C	±0.004°C at TPW after 100 hours at 661°C
Short Term Stability	±0.007°C			±0.002°C
Thermal Shock	±0.005°C after (10) thermal cycles from minimum to maximum temperatures			±0.002°C after (10) thermal cycles from minimum to maximum temperatures
Hysteresis	<=0.005°C			<=0.001°C
Self-heating	50 mW/°C			0.0015°C at 0.5mA
Response Time	9 seconds for 63% response to step change in water moving at 3 feet per second
Measurement Current	0.5 mA or 1 mA
Sensor Length	32 mm			42 mm
Sensor Location	5 mm from tip
Insulation Resistance	>1000 MΩ at room temperature
Sheath Material	Stainless Steel	Inconeltm
Dimension	AM1710-12-ADT	AM1730-12-ADT	AM1751-12-ADT	AM1760-12-ADT
	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)
	AM1710-BEND-ADT	AM1730-BEND-ADT	AM1751-BEND-ADT	AM1760-BEND-ADT
	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 7.4 inch (190 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end
External Leads	Teflontm –insulated copper wire, 4 leads, 0.8 meters
Handle Dimension	15 mm (OD) x 65 mm (L)
Handle Temperature Range[1]	-50°C to 160°C	-50°C to 180°C
Calibration	NIST traceable calibration with data included. Accredited calibration available per request.
[1] Handle temperatures outside this range will cause damage to the probe.
[2] Includes calibration and 100 hour drift.
[3] Probe calibration ranges may differ from probe temperature ranges (see Calibrated Accuracy for calibration ranges).
*PRT Information from www.accumac.com

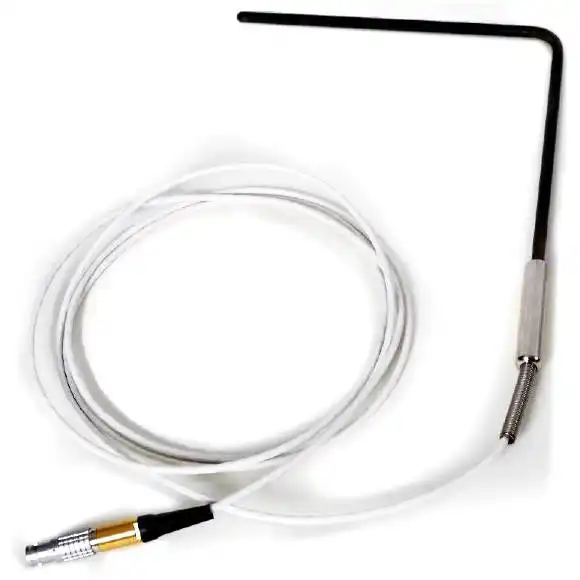

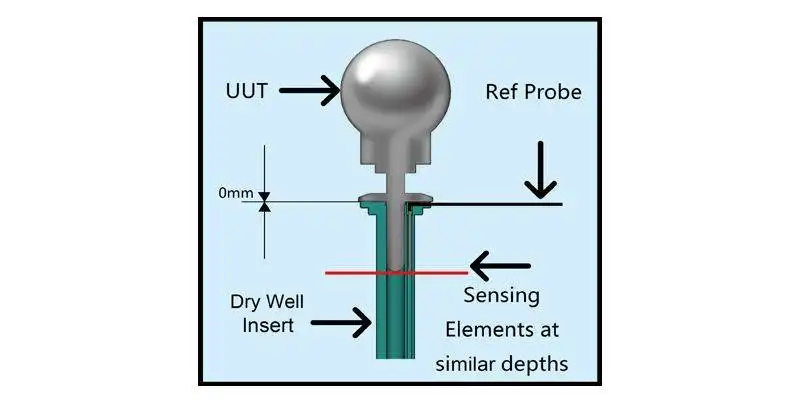

AM1612-ADT Secondary PRT Specifications
Temperature Range	-40°C to 160 °C
Resistance at 0 °C	Nominal 100 Ω
Temperature Coefficient	0.00385Ω/Ω /°C
Accuracy	±0.05°C at 0°C
Drift	±0.04°C at 0°C after 100 hours at 160°C
Short Term Stability	±0.02°C
Thermal Shock	±0.02°C after 10 times thermal cycles from minimum to maximum temperatures
Hysteresis	<= 0.01°C
Self-heating	75 mW/°C
Response Time	4 seconds for 63% response to step change in water moving at 3 feet per second
Measurement Current	1 mA
Internal Sensor Length	0.49" (15 mm)
Dimension	0.118" X 0.984" (3mm X 25mm)
Insulation Resistance	>1000 MΩ at room temperature
Sheath Material	Stainless Steel 316 L
Dimension	0.118 inch X 1.78 inch ( 3 mm X 45 mm )
External Leads	Enameled copper wire protected by high temperature heat shrink tubing, 4 leads, 0.8 meters
Calibration	NIST traceable calibration with data provided

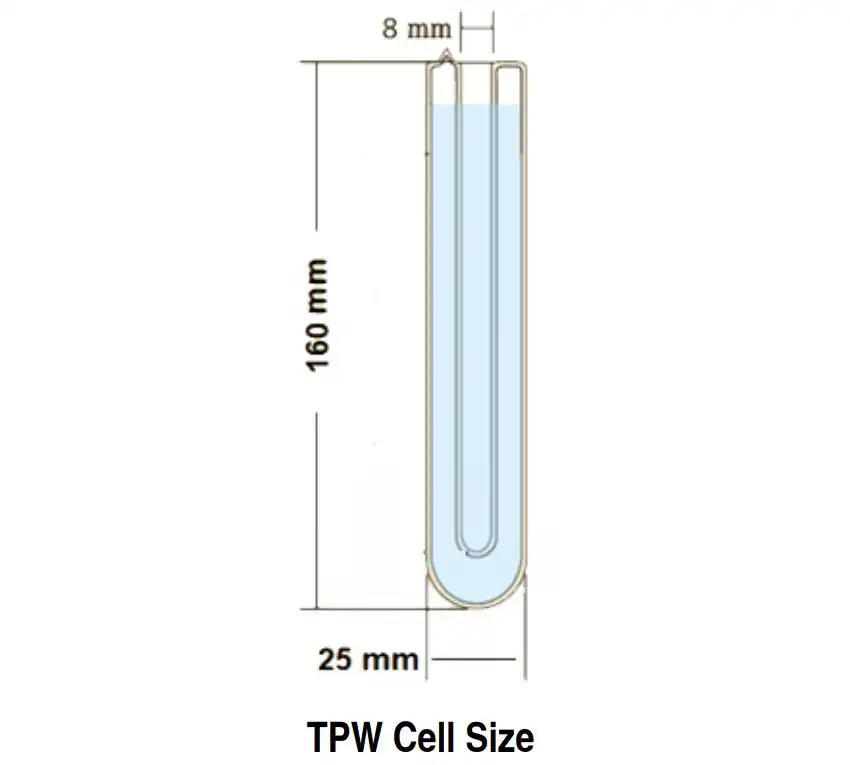

Triple Point of Water Specifications
Specification	Display
Uncertainty	<0.0005°C [1]
Immersion depth/ID	115 mm X 8 mm
External Dimensions	160 mm X 25 mm
Cell material	Borosilicate Glass
Realization time	20 mins
Estimated working time	2 hours
Recommended thermal Fluid	Ethanol
Warranty	1 year

Standard Accessories
Reference Dry Well and selected insert	1 pc.
Power Cable	1 pc.
USB Cable	1 pc.
Insert Removal Tool	1 pc.
Thermal Shield (ADT878/PC-425/700 only)	1 pc.
Silica Gel plugs (ADT878/PC-160 only)	1 set (3 pcs.)
Insulation Plug (ADT878/PC-160 only)	1 pc.
Test leads (ADT878PC only)	2 sets (4 pcs.)
ISO 17025 Accredited Calibration	1 pc.
CD Manual	1 pc.

Optional Accessories
9915-878	Carry Case for ADT878- 160/425/700 with wheels
ADT110-878-XINSERT-X	Insert for ADT878, see insert ordering information on the next page
AM17XX-12-ADT	Secondary PRT with dry well connector, see PRT information on the next page
AM17XX-BEND-ADT	Bend Secondary PRT with dry well connector, see PRT information on the next page
9070	Smart connector for reference PRT used with ADT878 Dry Well Calibrator
9071	Connector Adapter from smart connector to 4-wire with goldplated spades for ADT878 Dry Well Calibrator
9072	Smart connector with clamps for reference PRT used with ADT878 Dry Well Calibrator
9080	Cable Kit (includes TC plug, compensation cable, S,R,B,K,J,T,E,N)
ADT878-TPW-KIT	Triple point of water cell kit (see ADT878-TPW-KIT for details)

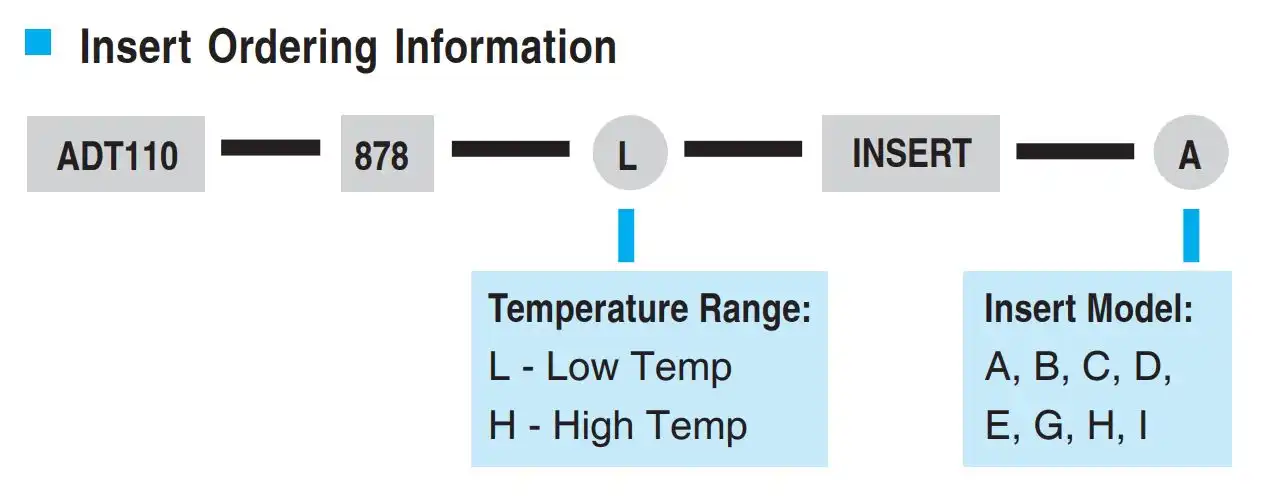

Insert Information
A
B
C
D
E
G
H
I

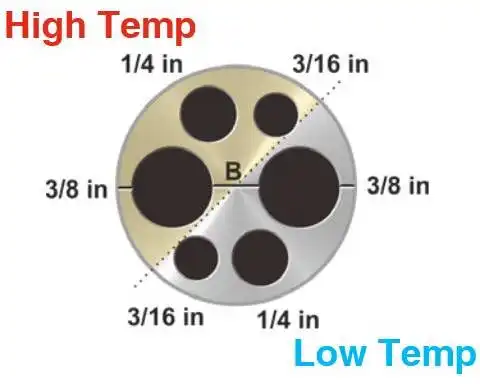

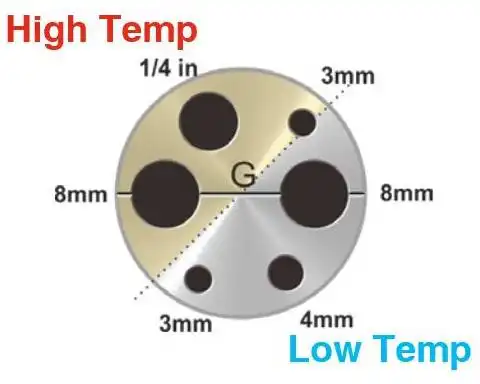

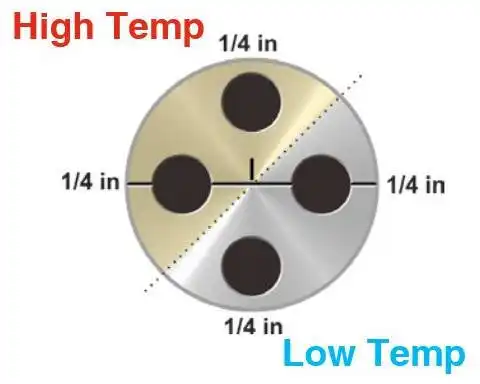

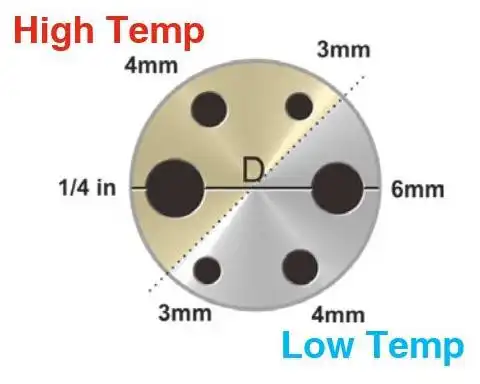

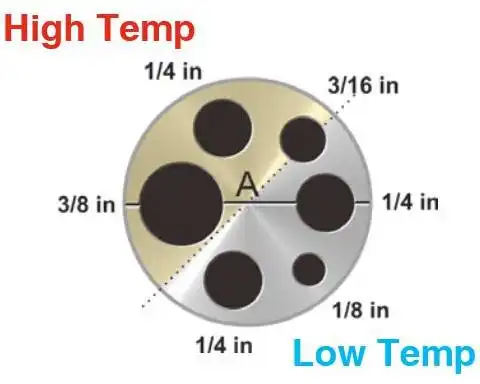

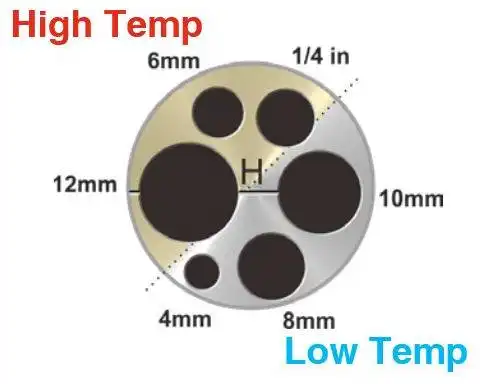

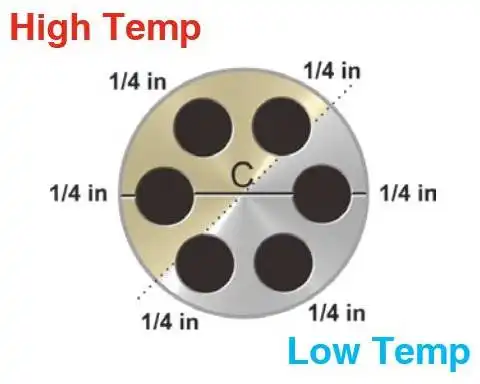

* High Temp is in the upper left, Low Temp is in the bottom right

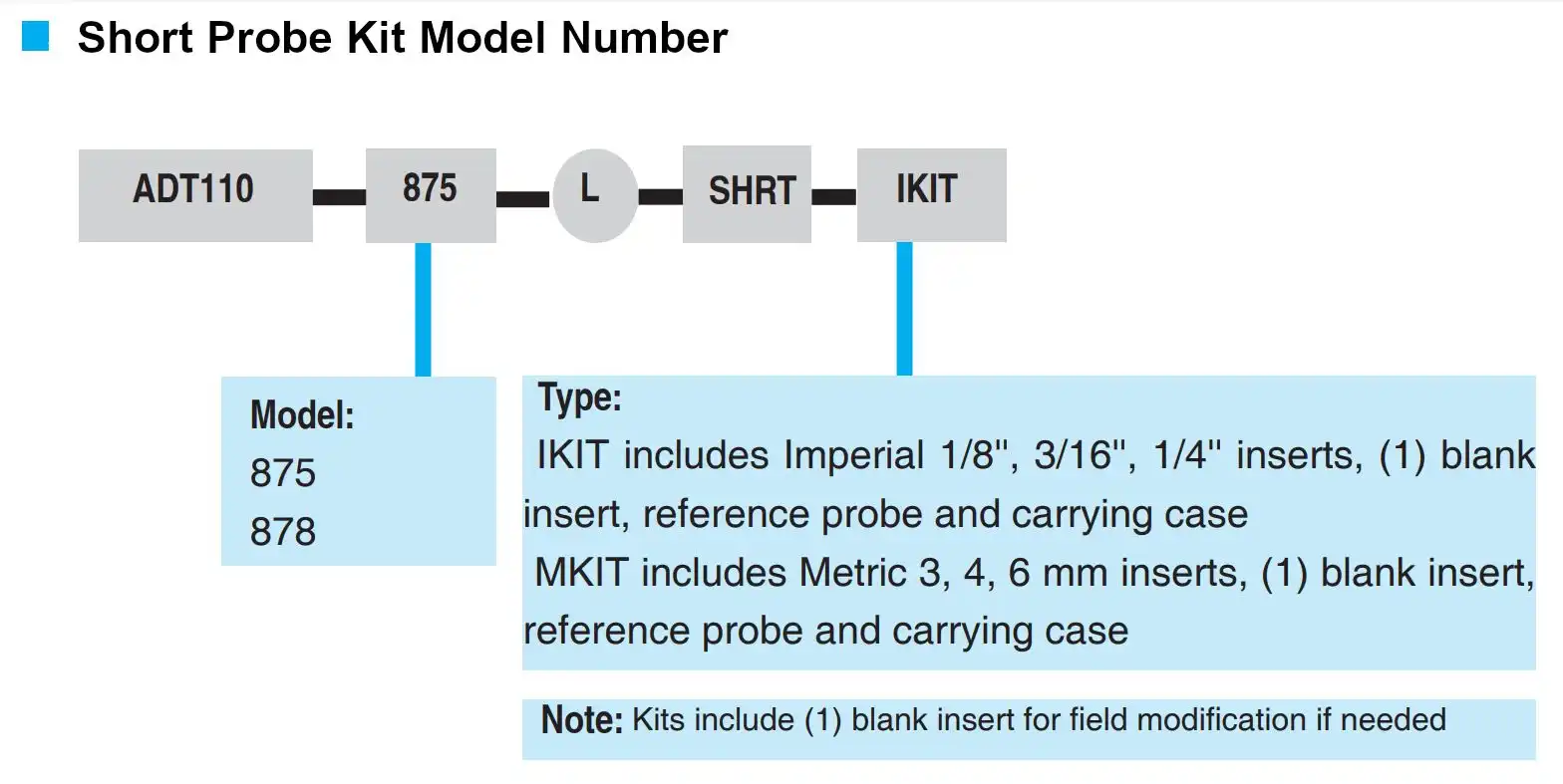

Optional Accessories
ADT110-875-L-SHRT-Z	Spare Blank Insert
ADT110-878-L-SHRT-D	Spare Blank Insert
AM1612-ADT	Spare Short Style Secondary Reference Probe

Insert Types
3 mm dia.
4 mm dia.
6 mm dia.
1/8 in dia.
3/16 in dia.
1/4 in dia.

Included Accessories (Triple Point of Water Realization Kit)
1520000292	TPW cell, 1 pc.
1223000410	Cell basket, 1 pc.
1223000411	1 Basket cover, 1 pc.
1223000412	Basket cover with hole, 1 pc.
1520000291	Support ring, 1 pc
1810298249	Cell removal tool, 1 pc
1520000290	Bottom cushion, 1 pc.

Documents and Links
Additel Hart Communication Manual
Additel 878 Dry Well Calibrator User Manual
Additel 878 Dry Well Calibrator Datasheet
Additel Short Probe Temperature Calibration Kit Datasheet
Additel 878-TPW-KIT Triple Point of Water Realization Kit Datasheet

Videos
ADT878 Intro Video
ADT878-700 Annealing Video
Additel Short Probe Kit Video
ADT878 Triple Point of Water - How To Video

878-160

The 878-160 features temperature control from -40°C to 160°C and a display accuracy of ±0.1°C at Full Range. It can also run a fully automated Triple Point of Water (TPW) test to realize and maintain a TPW cell, which can be used to check probe drift over time.

878-425

The 878-425 features temperature control from 33°C to 425°C and a display accuracy of ±0.2°C at Full Range.

878-700

The 878-700 features temperature control from 33°C to 700°C and a display accuracy up to ±0.2°C. It also features an automated annealing capability used to anneal PRTs and mitigate drift. This feature comes with preconfigured annealing procedures, but also allows for user-created annealing programs to be run.

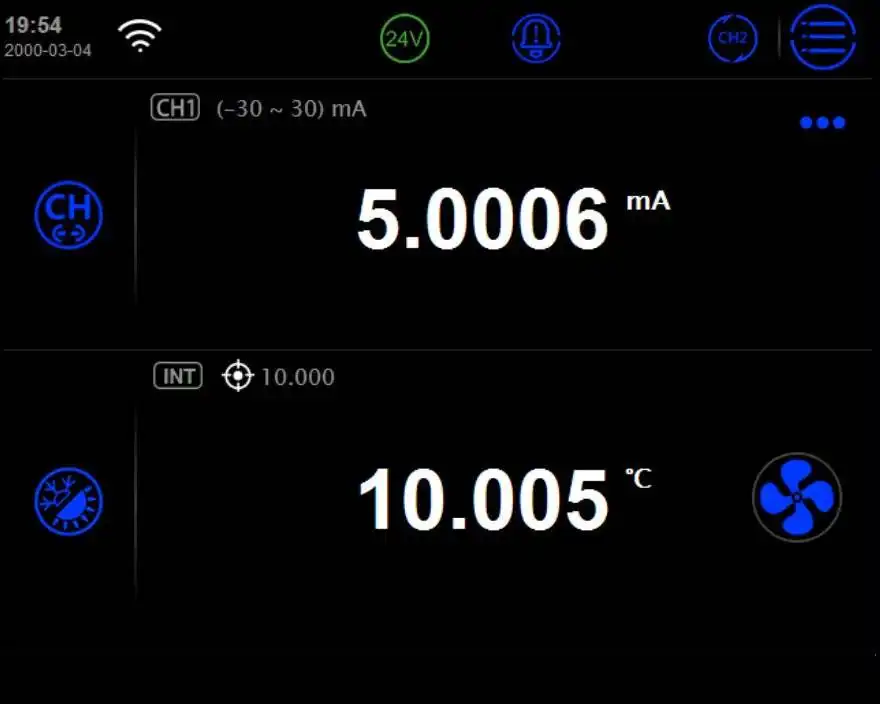

Specification	878 Display / Picture (Image 1)	878 Display / Picture (Image 2)
Task
mA Measurement
Auto Step
Remote Control
Data Logging
HART Communicator

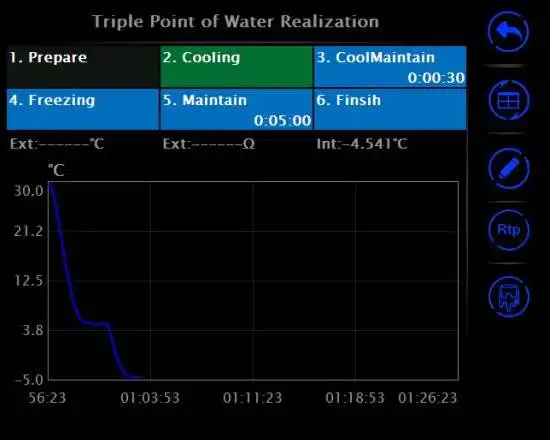

TPW Cell Realization

Standard Accessories
Model	Quantity	Picture

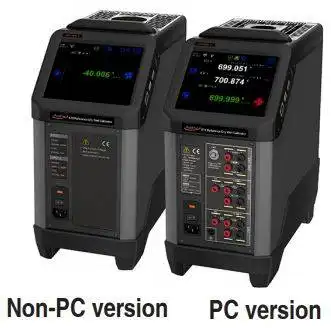

Reference Dry Well and selected insert	1 pc.
Power Cable	1 pc.
USB Cable	1 pc.
Insert Removal Tool	1 pc.
Thermal Shield (ADT878/PC-425/700 only)	1 pc.
Silica Gel plugs (ADT878/PC-160 only)	1 set (3 pcs.)
Insulation Plug (ADT878/PC-160 only)	1 pc.
Test leads (ADT878PC only)	2 sets (4 pcs.)
ISO 17025 Accredited Calibration	1 pc.
CD Manual	1 pc.

Optional Accessories
Model Number	Description	Product Picture
ADT110-875-L-SHRT-Z	Spare Blank Insert
ADT110-878-L-SHRT-D	Spare Blank Insert
AM1612-ADT	Spare Short Style Secondary Reference Probe

Insert Types
Type	Product Picture
3 mm dia.
4 mm dia.
6 mm dia.
1/8 in dia.
3/16 in dia.
1/4 in dia.

Included Accessories (Triple Point of Water Realization Kit)
Model	Cell	Picture
1520000292	TPW cell, 1 pc.
1223000410	Cell basket, 1 pc.
1223000411	1 Basket cover, 1 pc.
1223000412	Basket cover with hole, 1 pc.
1520000291	Support ring, 1 pc
1810298249	Cell removal tool, 1 pc
1520000290	Bottom cushion, 1 pc.

Additel 878

Reference Dry Well Calibrator

Cookies
