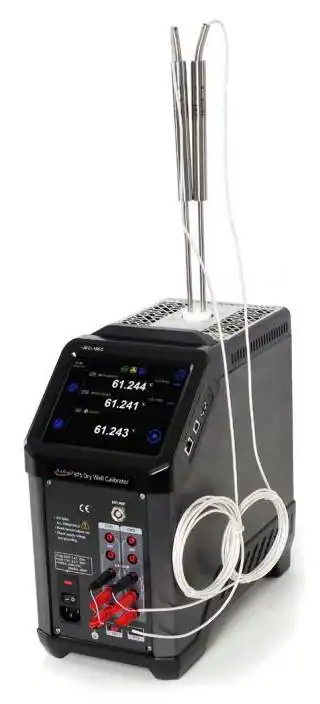

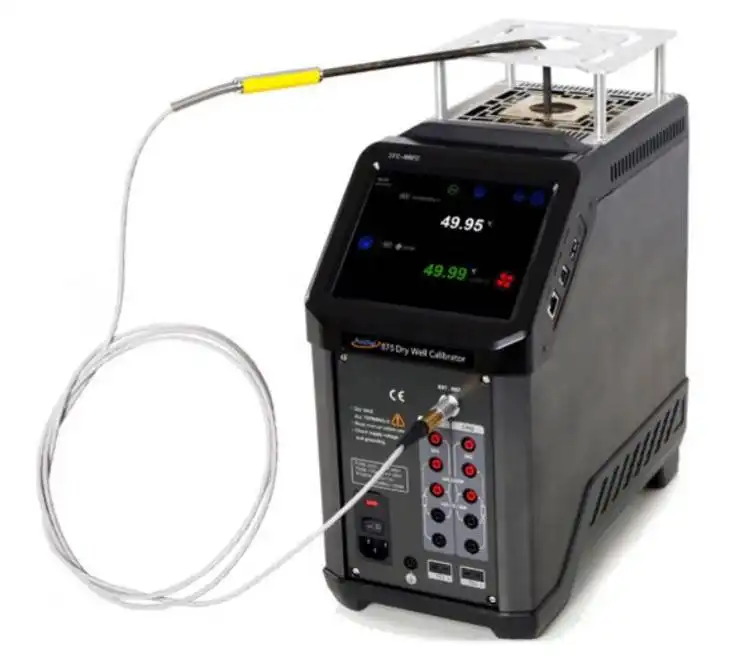

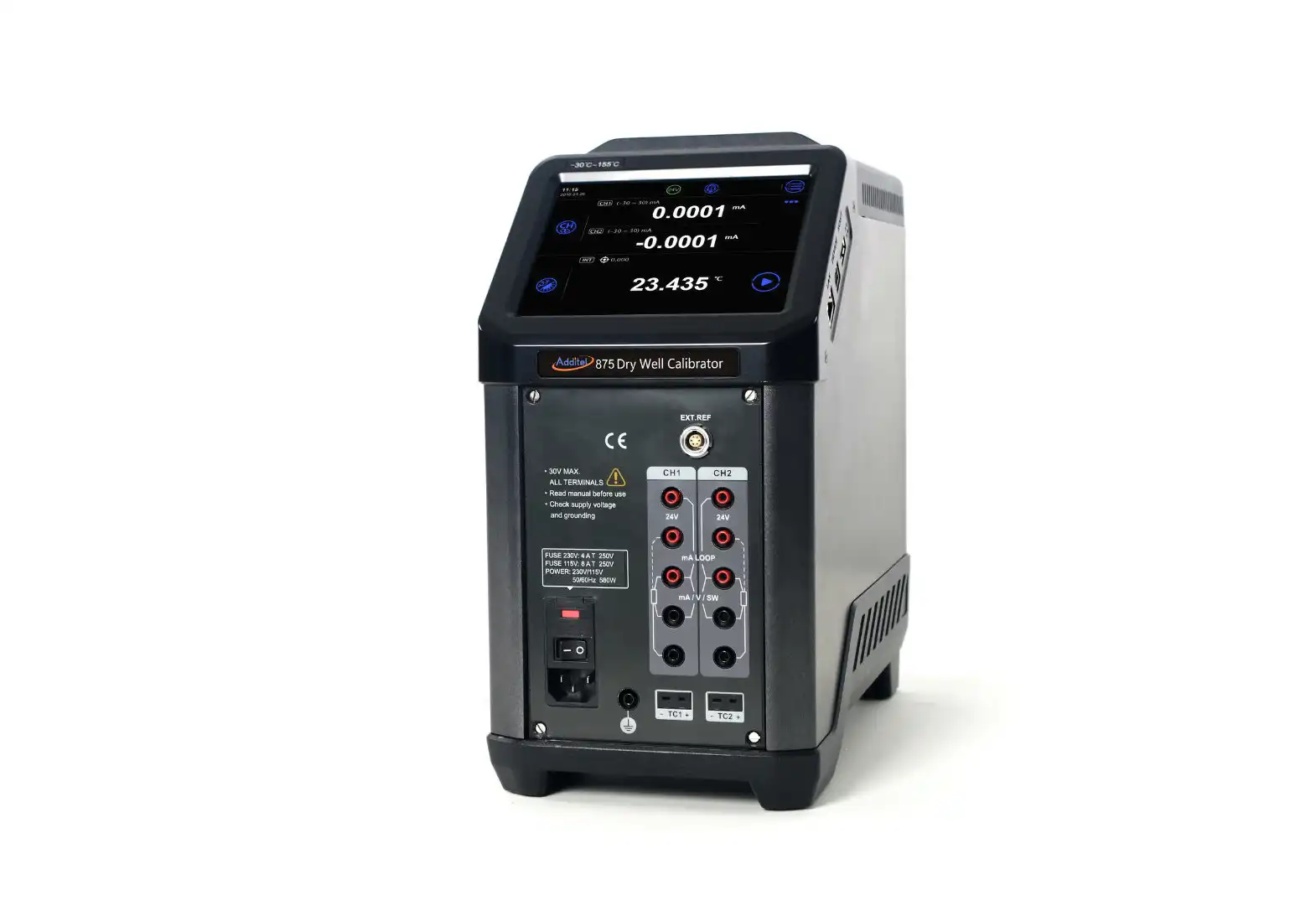

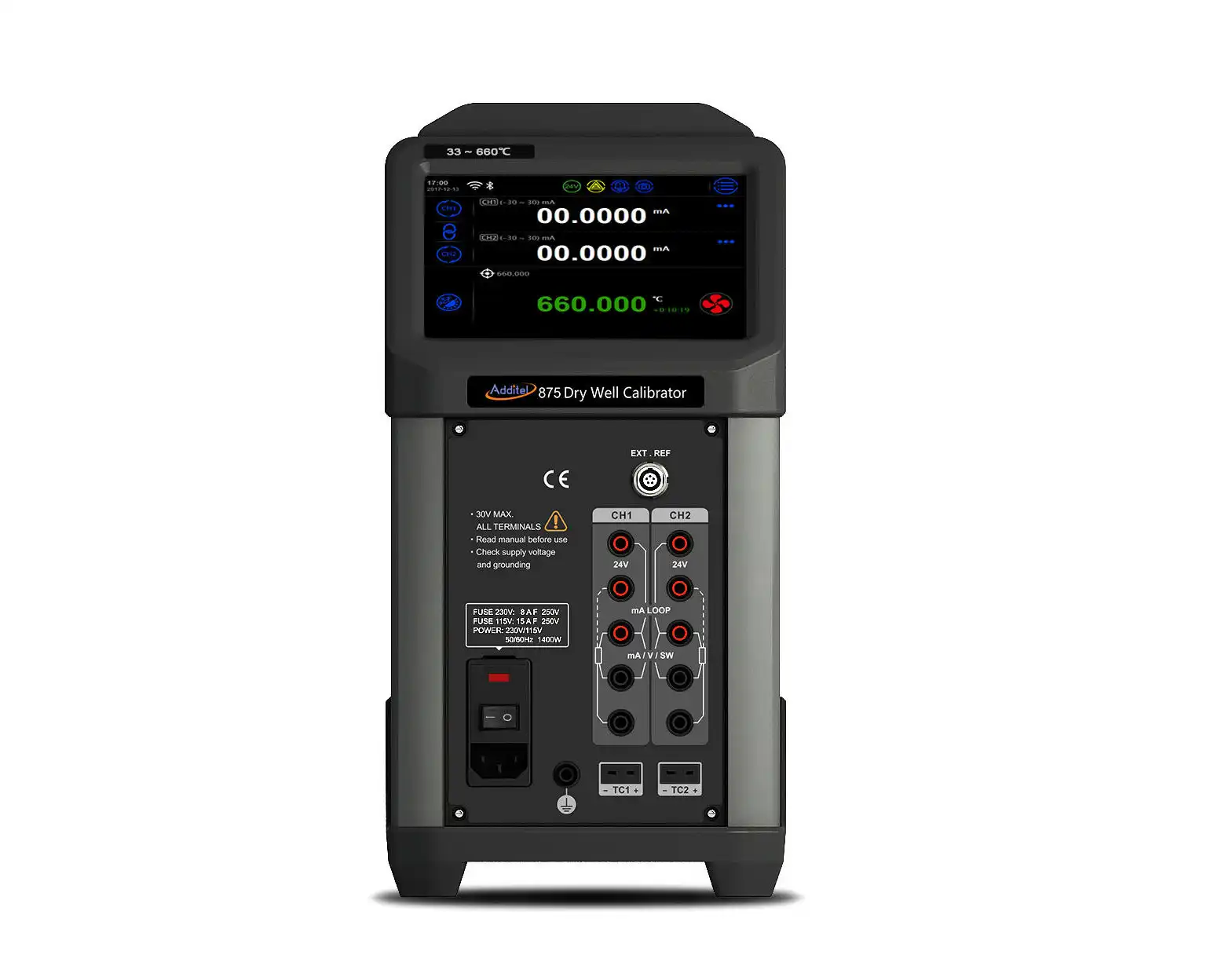

Additel 875

Additel 875

Dry Well Calibrator

Portable, rugged, and quick to temperature
Metrology-level performance in stability, uniformity, accuracy and loading effect
Dual-zone control

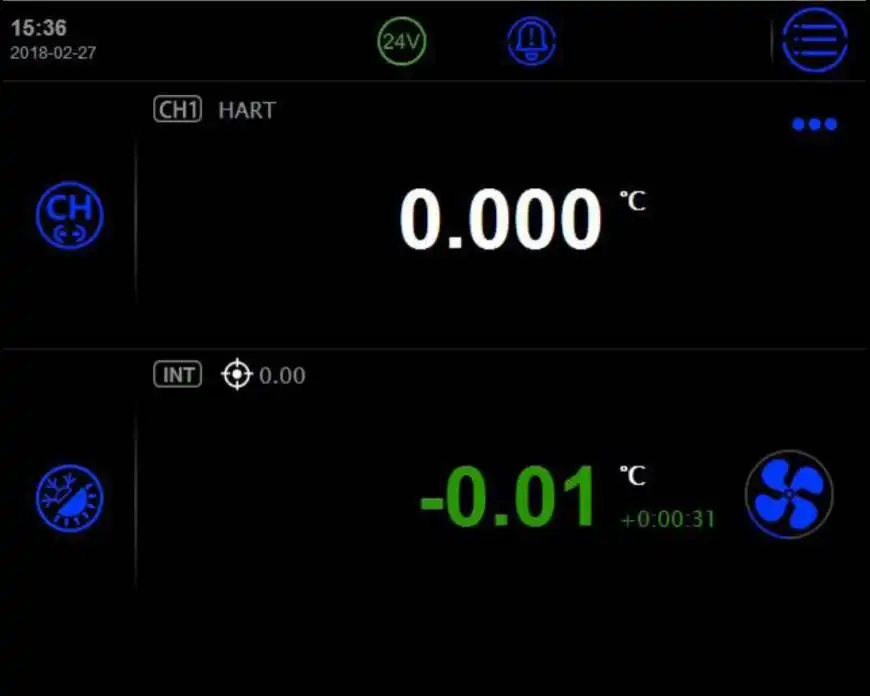

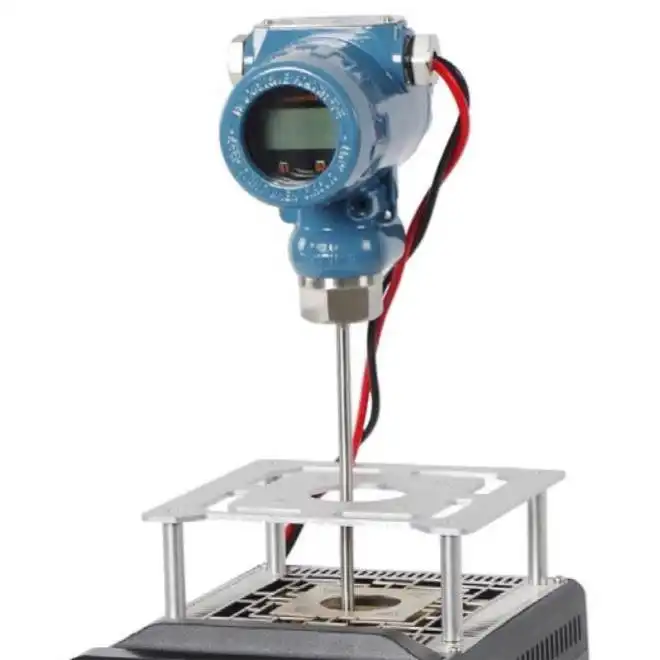

Full HART field communicator
Process calibrator option provides a multi-channel readout for a reference thermometer, RTDs and TCs, task documentation, and HART Communication
Color touch screen display
Choose your own range option

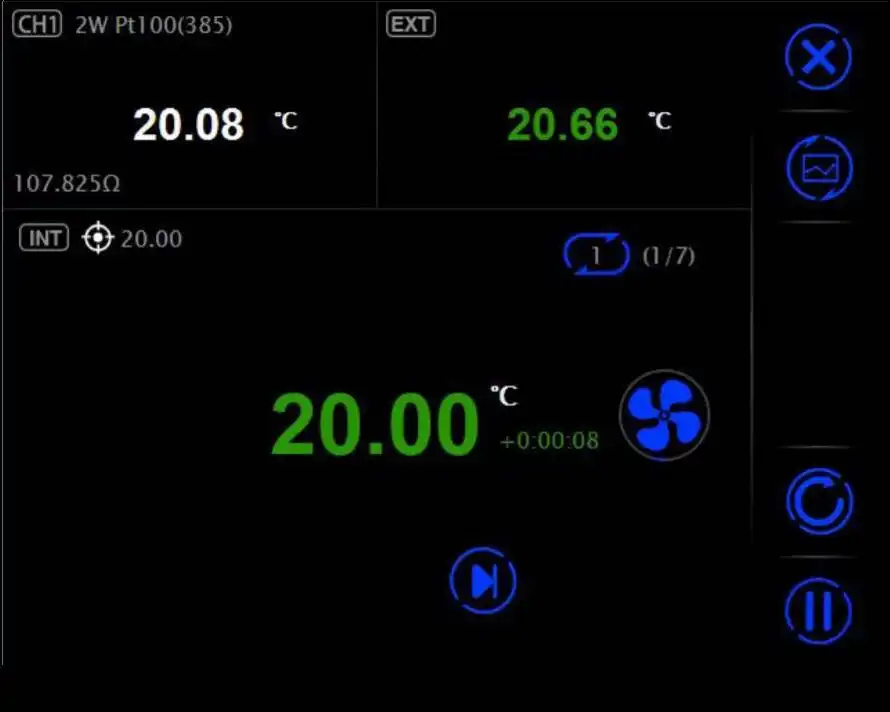

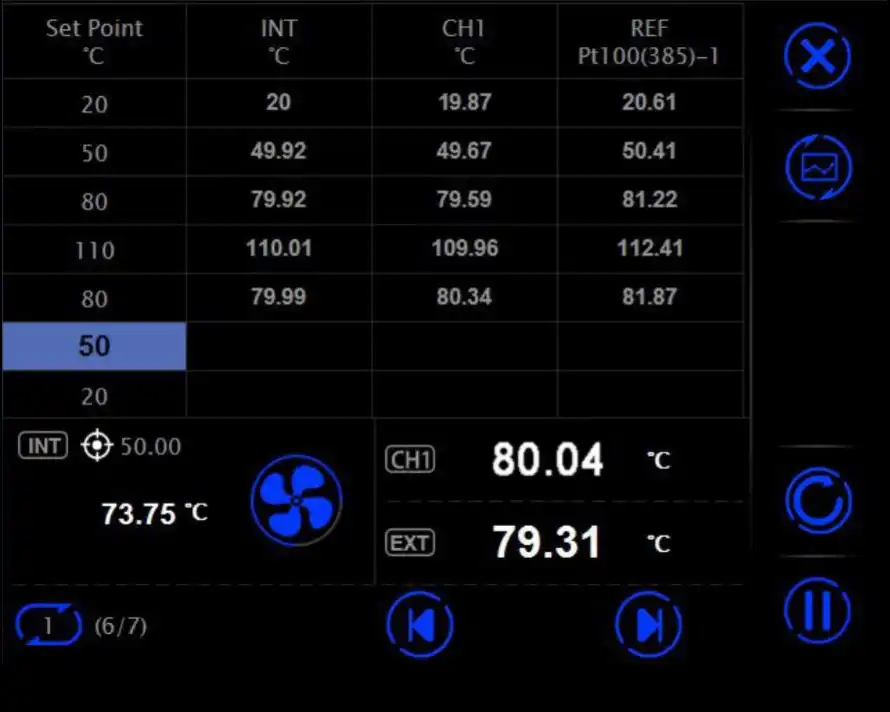

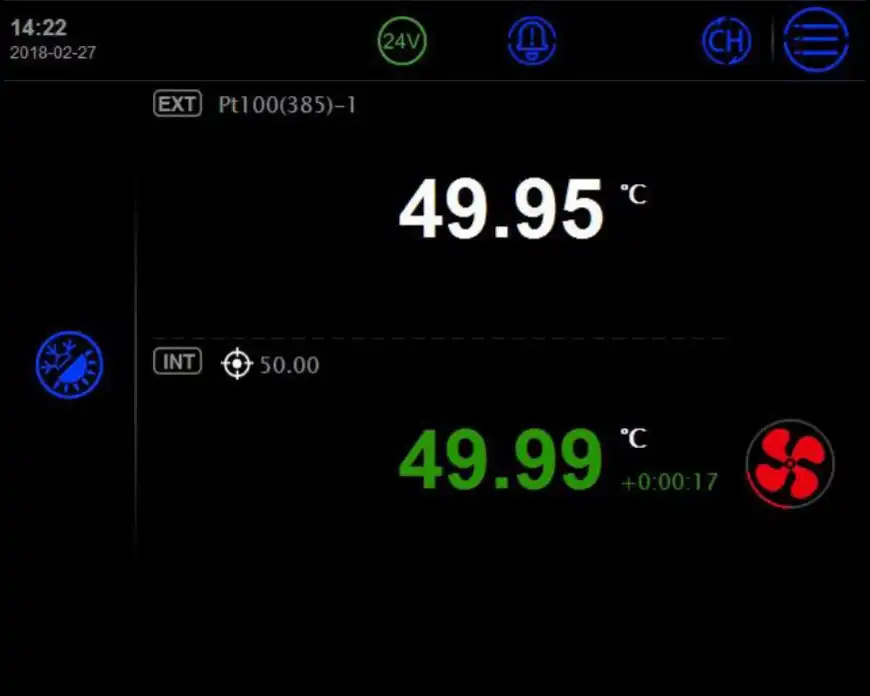

Set point control by reference
Self-calibration feature
ISO 17025-accredited calibration w/data included

If you are serious about portable temperature calibration tools, then you know a good dry well calibrator is more than just a stable heat source. The Additel 875 Series Dry Well Calibrators combine excellent performance in stability, radial and axial uniformity. And loading with speed, ruggedness and portability. But we don’t stop there! The Process Calibrator option adds the capabilities of a three-channel thermometer readout and a documenting process calibrator. We’ve also incorporated a unique option to select your own temperature range within the range of the model selected. We’re calling this the CYOR option or Choose Your Own Range option. When you purchase the CYOR option, you pick the upper and lower temperature range needed and we calibrate and optimize the dry well’s performance over your selected range. Each unit has a color touch screen display, dual-zone control, and much more. You are just going to love these new dry wells!

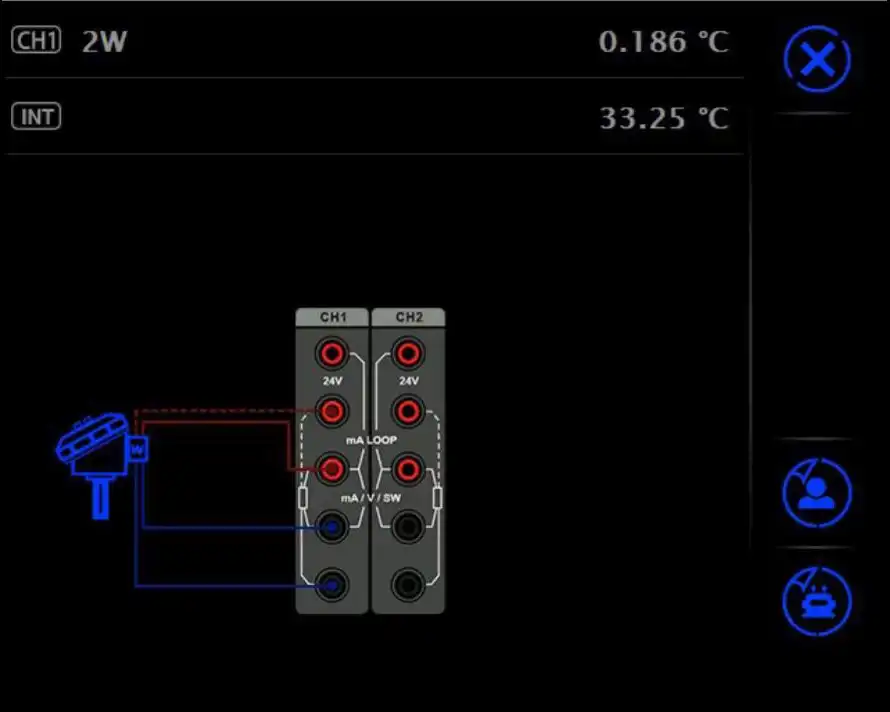

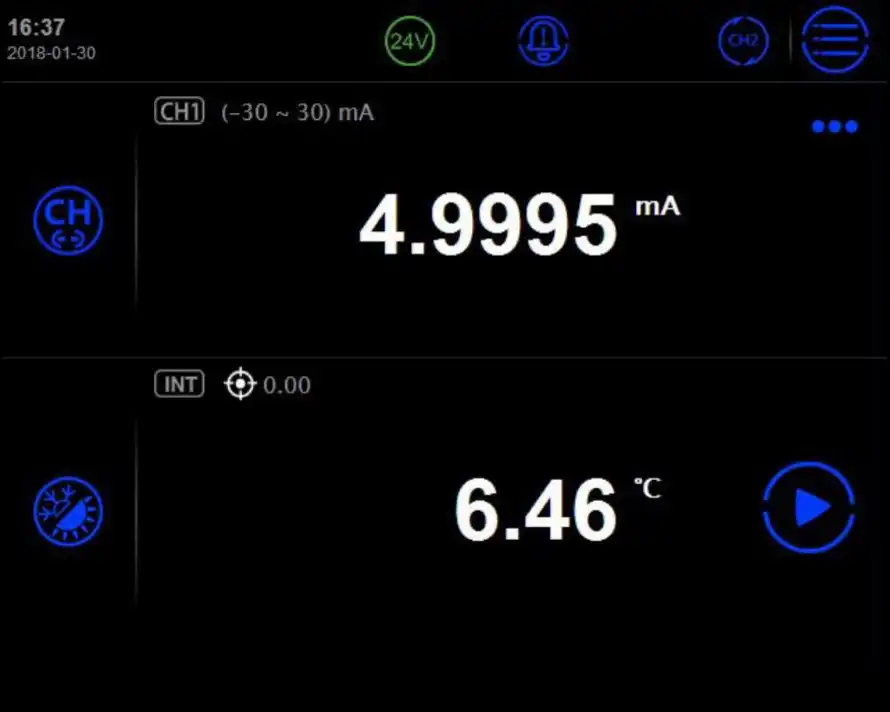

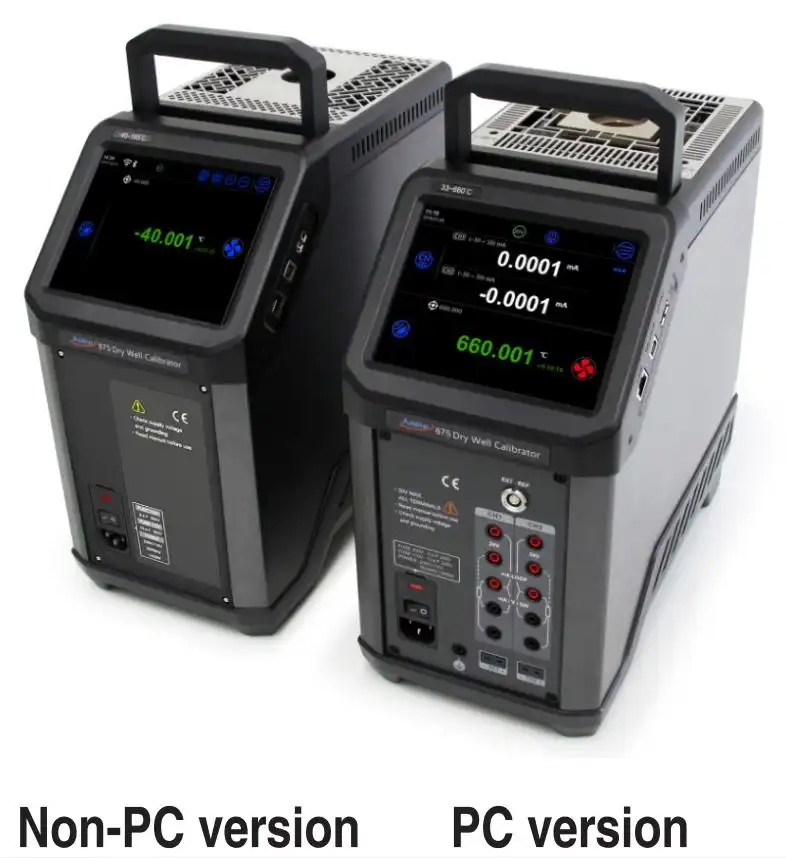

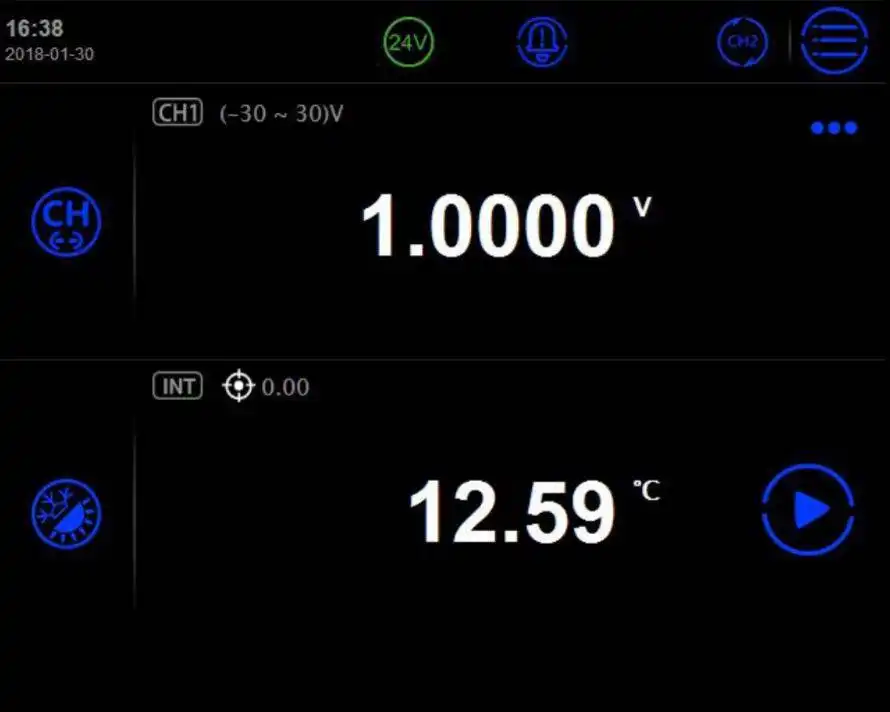

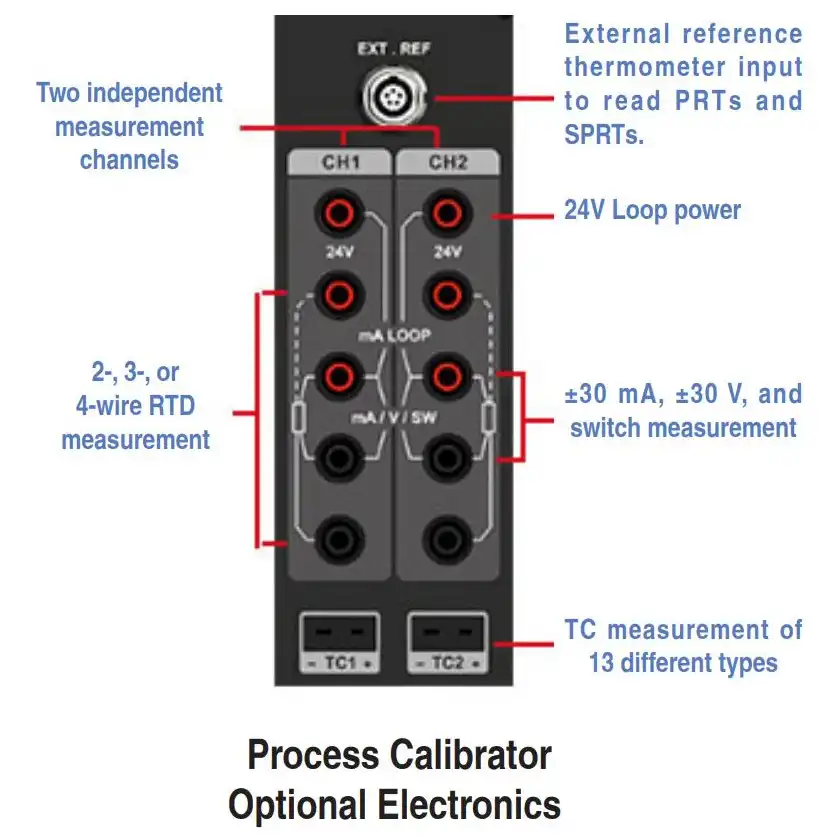

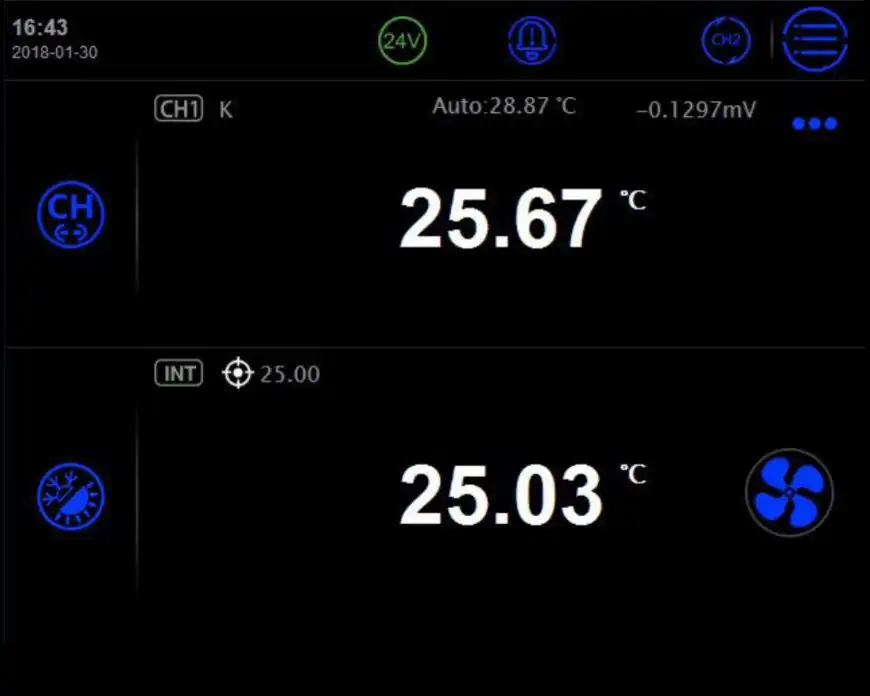

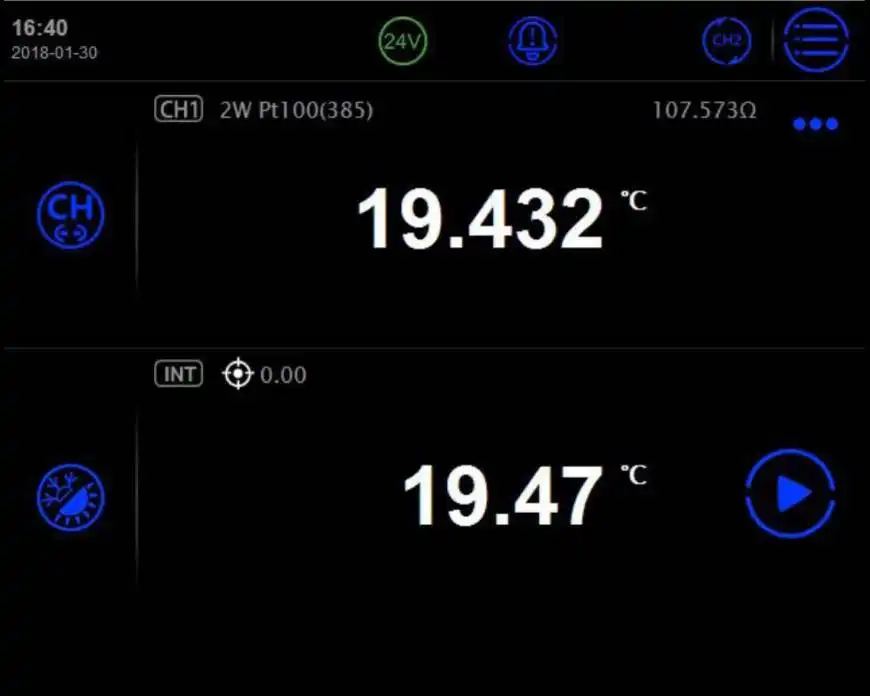

Process Calibrator Option

Each model offer has a Process Calibrator (PC) option. This process calibrator option combines the many features found in a fully functional HART documenting process calibrator with the temperature dry well. This option includes the ability to measure a reference PRT and two devices under test channels which can measure, mA, voltage, switch, RTD or thermocouple. In addition to these measurement functions, this calibrator has full documenting capability of creating tasks, saving as found and as left results, as well as reading, configuring and calibrating HART capable transmitters. The snap shot feature allows you to capture all information displayed on the screen with the push of a button. This optional add-on allows for data logging of all channels on an auto step function and a ramp function. By utilizing the reference PRT, you can select to control to the dry well set point using the internal sensor or the external reference PRT.

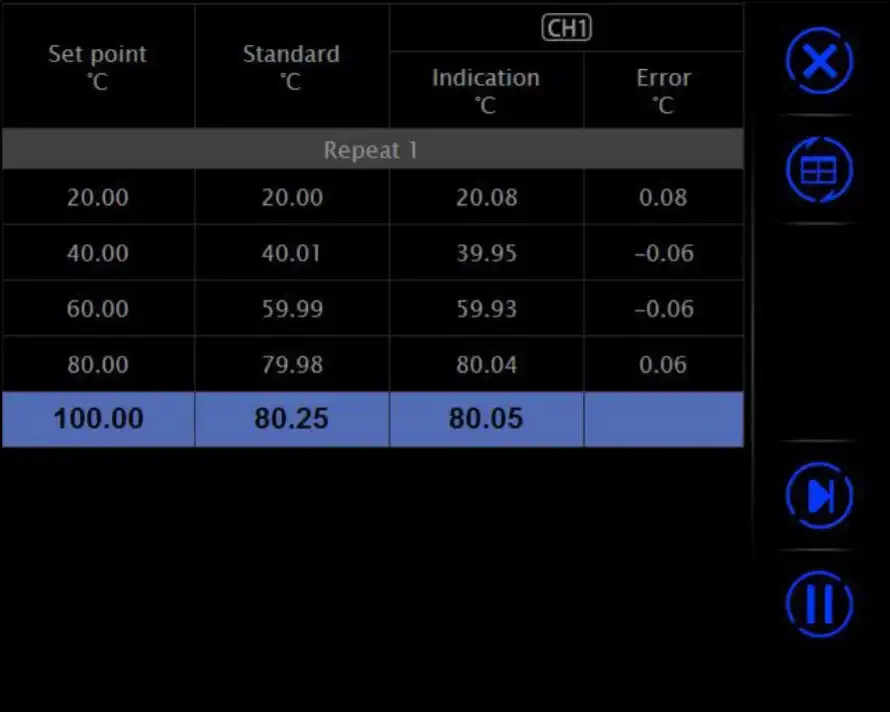

Self Calibration

We believe using an external reference probe as your standard is the best way to perform your temperature calibration. But we also recognize this method is not always necessary or convenient and depending on the application, using the internal control sensor would be preferred. Traditionally, the internal control sensor has a wide accuracy which can largely be contributed to its long-term drift. We’ve built in a self calibration feature allowing you to run an automated calibration of the internal control sensor using your external reference. With literally a few selections the calibration will run automatically giving you a fresh, traceable calibration of the control sensor which will improve its accuracy as you will not have to account for its long term drift when used as the reference.

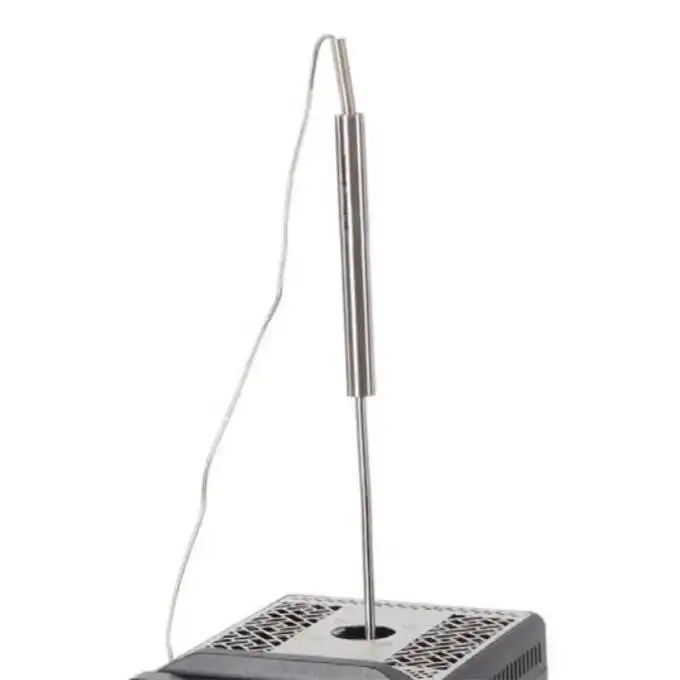

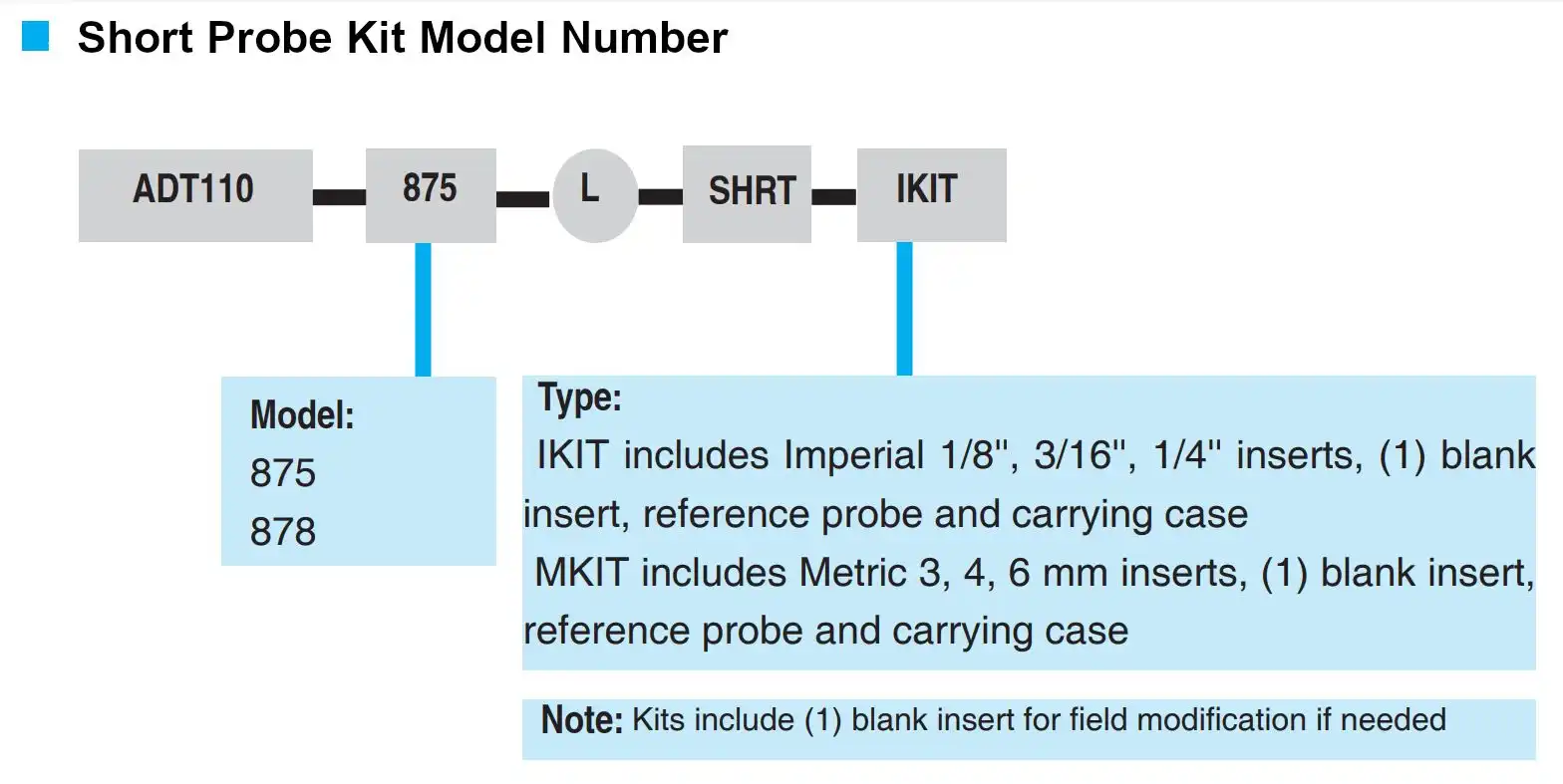

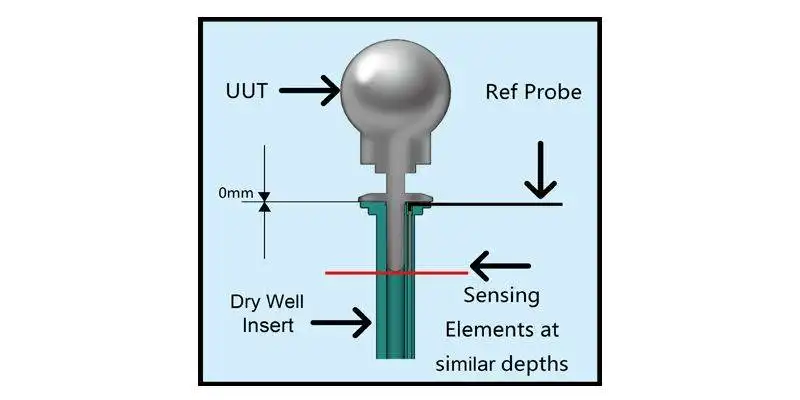

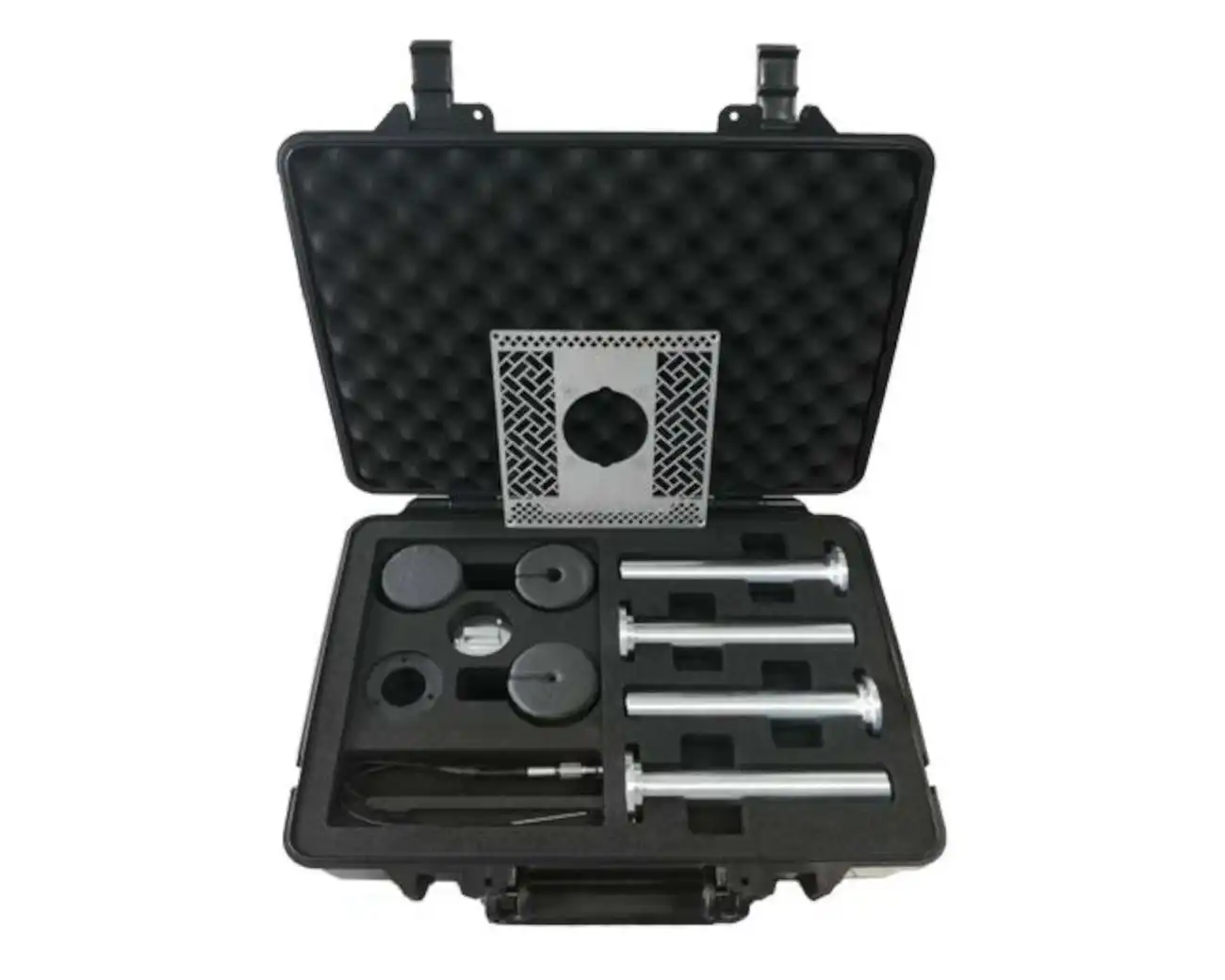

Short Probe Kit

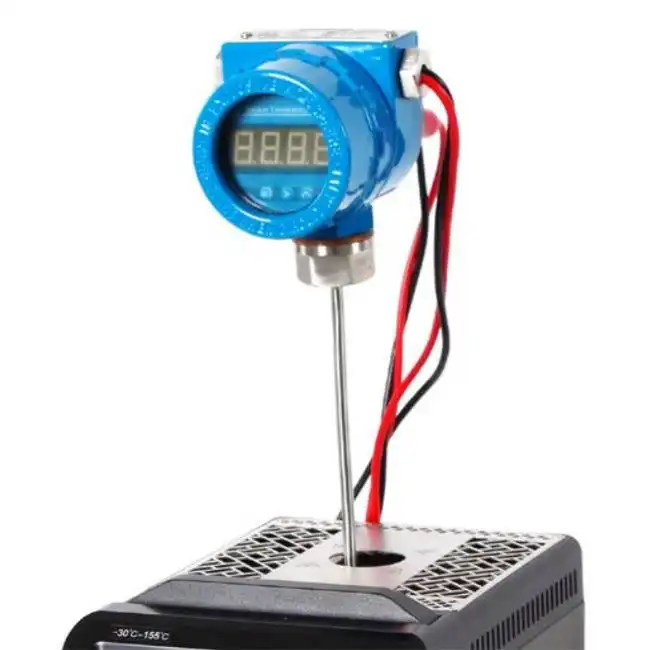

The Additel 110 series short probe calibration kit is designed to help users of our ADT875-155 (-40°C dry well) calibrate temperature probes and transmitters with short probe lengths. This all-inclusive kit comes with everything needed to perform more accurate and reliable calibration for those challenging short probes. Choose between our metric or imperial kit to fit your needs. For more information, please watch our instructional short probe video found at www.additel.com

Base Unit Dry Well Specifications
Specification	875-155	875-350	875-660
Temperature Range at 23°C	-40°C to 155°C	33°C to 350°C	33°C to 660°C
Display Accuracy	±0.18°C at Full Range	±0.2°C at Full Range	±0.3°C at 33°C
			±0.3°C at 420°C
			±0.5°C at 660°C
Stability (30 min)	±0.01°C at Full Range	±0.02°C at Full Range	±0.02°C at 33°C
			±0.03°C at 50°C
			±0.04°C at 420°C
			±0.04°C at 660°C
Axial Uniformity at 60 mm (2.4 in)	±0.07°C at Full Range	±0.04°C at 33°C	±0.05°C at 33°C
		±0.1°C at 200°C	±0.3°C at 420°C
		±0.2°C at 350°C	±0.5°C at 660°C
Radial Uniformity	±0.01°C at Full Range	±0.01°C at 33°C	±0.02°C at 33°C
		±0.015°C at 200°C	±0.05°C at 420°C
		±0.02°C at 350°C	±0.1°C at 660°C
Loading Effect	±0.1°C (Display Sensor)	±0.15°C (Display Sensor)	±0.15°C (Display Sensor)
Loading Effect	±0.02°C (External Sensor)	±0.015°C (External Sensor)	±0.035°C (External Sensor)
Hysteresis (Display Sensor)	0.025°C	0.03°C	0.1°C
Environmental Conditions	8°C to 38°C guaranteed accuracy
	0°C to 50°C, 0% to 90% RH non-condensing, 3000 M altitude for normal operation
Storage Conditions	-20°C to 60°C
IP Rating	IP20
Immersion Depth	145 mm (5.70 in)	150 mm(5.90 in)
Insert OD	25.8 mm (1.02 in)	24.8 mm (0.98 in)
Heating Time	13 min: -40°C to 155°C	10 min: 33°C to 350°C	15 min: 33°C to 660°C
	5 min: -40°C to 23°C
	8 min: 23°C to 155°C
Cooling Time	28 min: 155°C to -40°C	15 min: 350°C to 100°C	23 min: 660°C to 100°C
	8 min: 155°C to 23°C	10 min: 100°C to 50°C	12 min: 100°C to 50°C
	20 min: 23°C to -40°C	10 min: 50°C to 33°C	12 min: 50°C to 33°C
Typical Time to Stability	10 min
Resolution	0.01°C
Units	°C, °F, and K
Display	6.5 in (165 mm) color touch screen
Size (H x W x D)	320 x 170 x 330 mm (12.6 x 6.7 x 13.0 in)
Weight	9.9 kg (21.8 lbs)	8.2 kg (18.1 lbs)
Power Requirements	90-254 VAC, 45-65 Hz, 580 W	90-254 VAC, 45-65 Hz, 1200 W
Mechanical Testing	Vibration: 2 g (10-500 Hz), 30 min for 2 sides
	Impact: 4 g three times
	Drop test: 500 mm (19.6 in)

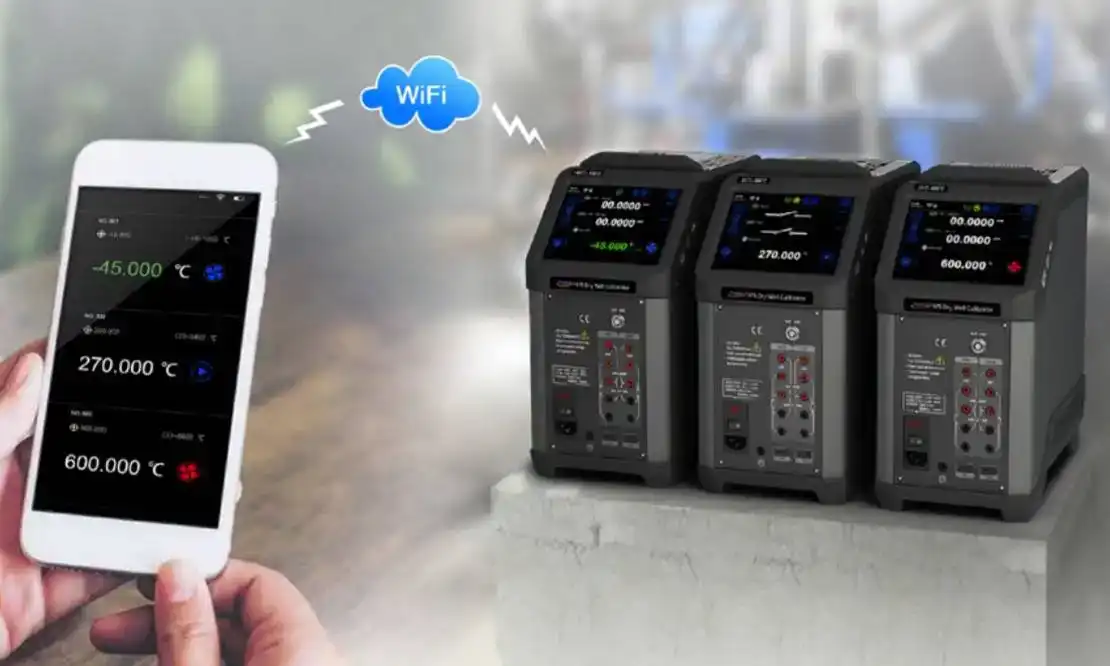

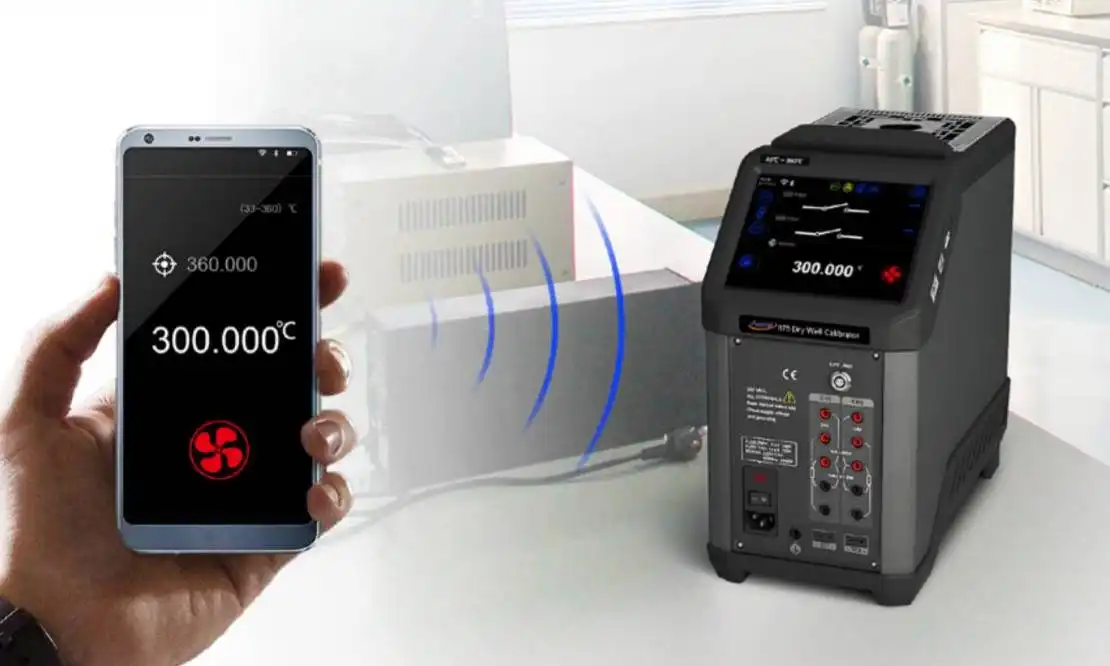

Communication	USB A, USB B, RJ45, WiFi, Bluetooth
Localization	English, Chinese, Japanese, Russian, German, French, Italian, and Spanish
Warranty	1 year

Input Specifications (Process Calibrator [PC] Option)
Specification	Description
Readout Accuracy for 100 ohm PRT (Probe Accuracy Not Included)	±0.009°C at -40°C
	±0.010°C at 0°C
	±0.012°C at 50°C
	±0.017°C at 155°C
	±0.019°C at 200°C
	±0.026°C at 350°C
	±0.030°C at 420°C
	±0.042°C at 660°C
Readout Resolution	0.5 mΩ
Reference Resistance Range	0Ω to 400Ω
Reference Resistance Accuracy	0Ω to 50Ω: 0.002Ω
Reference Resistance Accuracy	50Ω to 400Ω: 0.008% RD
Reference Characterizations	ITS-90, CVD, IEC-751, Resistance
Reference Measurement Capability	4-wire PRT
Reference Probe Connection	6-pin lemo smart connector
RTD Channels	2
RTD Measurement Accuracy (excl sensor) Compliance	0Ω to 25Ω: 0.002Ω
	25Ω to 400Ω: 0.004% RD
	400Ω to 4K Ω: 0.008% RD
RTD Measurement Resolution	0Ω to 400Ω: 1 mΩ
RTD Measurement Resolution	400Ω to 4K Ω: 0.01Ω
RTD Measurement Resistance Range	0Ω to 4KΩ
RTD Characterizations	PT10, PT25, PT50, PT100, PT200, PT500, PT1000, CU10, CU50, CU100, NI100, NI120
RTD Connection	Four 4 mm input jacks
RTD Channels	2 channels. Both accept 2, 3, or 4-wire RTDs
TC Channel	2
TC Measurement Channels	Mini TC terminals: Accepting S, R, K, B, N, E, J, T, C, D, G, L, and U
TC Measurement Accuracy (excl sensor)	Type K: ±0.13°C at 0°C ±0.15°C at 155°C ±0.18°C at 350°C ±0.24°C at 660°C
TC Range	–75 mV to 75 mV
TC Resolution	0.0001 mV, Input Impedance >100 MΩ
TC Voltage Accuracy	0.02% RD + 5 μV
Internal CJC Accuracy	±0.35°C (ambient from 0°C to 50°C)
Current Range	–30 mA to 30 mA
Current Accuracy	0.02% RD + 2 μA
Current Resolution	0.0001 mA, Input Impedance: < 10Ω
Voltage Ranges	–12 V to 12 V and –30 V to 30 V
Voltage Accuracy	±0.02% RD + 2 mV
Voltage Resolution	0.001 V; Input impedance: > 1MΩ

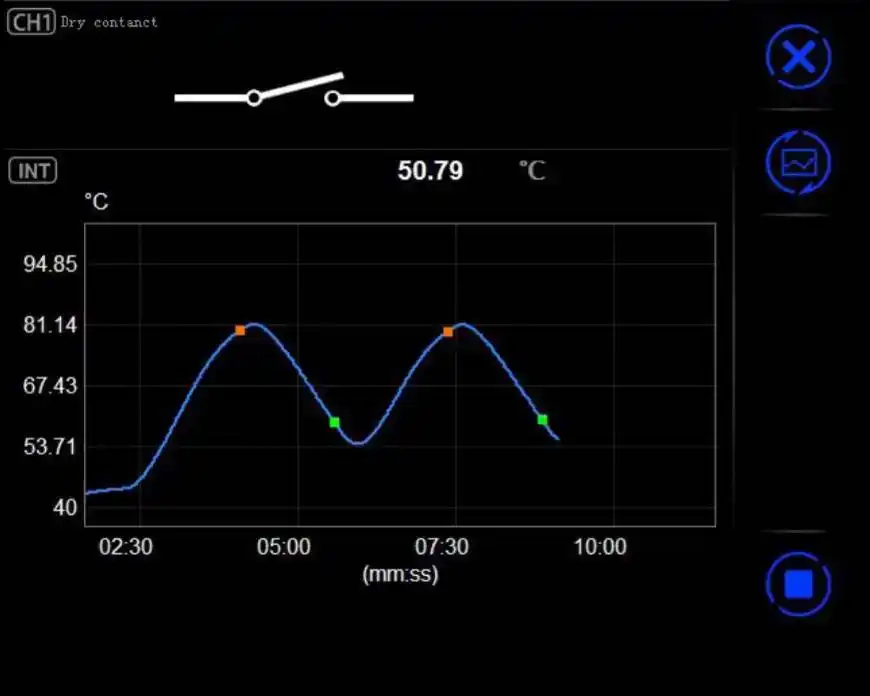

Switch Test	Mechanical or Electrical
DC 24V Output	24V ±10%, MAX60 mA
Hart Communicator	Read, configure and calibrate HART devices - DD files updated periodically Optional - (order ADT875PC)
Documentation	Up to 1,000 tasks which store up to 10 results each containing as found and as left data. Snap shot feature allows for screen captures. Records auto step and ramp functions.
Temperature Coefficient 0°C to 8°C and 38°C to 50°C	ADT875 (PC)-155: ±0.005°C/°C
	ADT875 (PC)-350/660: ±0.01°C/°C
	Ref Readout: ±5 ppm FS/°C
	RTD Readouts: ±2 ppm FS/°C
	TC Readouts: ±5 ppm FS/°C
	Current: ±5 ppm FS/°C
	Voltage: ±5 ppm FS/°C

TC Measurement Specification and Calculation (Process Calibrator [PC] Option)
TC Type	Temperature (°C)	Error (°C)[1]
B	250	±2
	350	±1.44
	660	±0.84
C	0	±0.38
	155	±0.34
	350	±0.33
	660	±0.38
	0	±0.52
	155	±0.37
	350	±0.33
	660	±0.36
E	-40	±0.09
	0	±0.09
	155	±0.1
	350	±0.13
	660	±0.19
G	0	±3.85
	155	±0.71
	350	±0.43
	660	±0.36
J	-40	±0.1
	0	±0.1
	155	±0.12
	350	±0.16
	660	±0.21
K	-40	±0.13
	0	±0.13
	155	±0.16
	350	±0.19
	660	±0.25
L	-40	±0.1
	0	±0.1
	155	±0.12
	350	±0.16
	660	±0.21
N	-40	±0.2
	0	±0.2
	155	±0.19
	350	±0.2
	660	±0.24
R	-40	±1.23
	0	±0.95
	155	±0.63
	350	±0.56
	660	±0.54
S	-40	±1.16
	0	±0.93
	155	±0.65
	350	±0.6
	660	±0.6
T	-40	±0.14
	0	±0.13
	155	±0.13
	350	±0.15
	400	±0.15
U	-40	±0.14
	0	±0.13
	155	±0.13
	350	±0.14
	600	±0.17
[1] Excluding cold junction compensation errors.

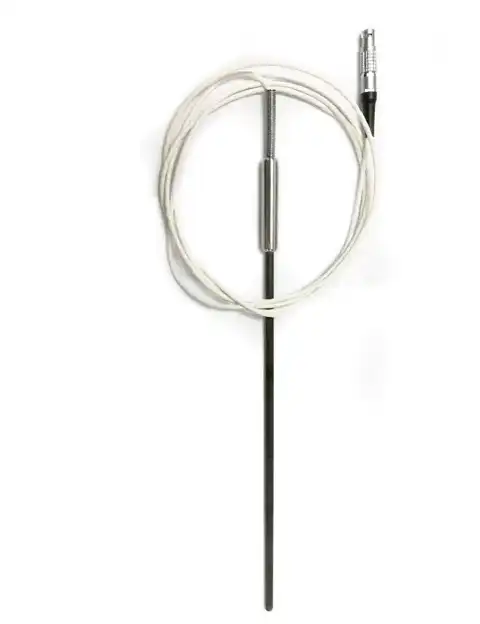

Secondary PRT Information
Specification	AM1710 Series	AM1730 Series	AM1751 Series	AM1760 Series
Temperature Range [3]	-60°C to 160°C	-200°C to 420°C	-200°C to 670°C	-200°C to 670°C
Resistance at 0°C	Nominal 100Ω
Temperature Coefficient	0.003925 Ω / Ω / °C
Calibrated Accuracy (k=2)[2][3]	±0.025°C at -40°C	±0.025°C at -40°C	±0.025°C at -40°C	±0.010°C at -196°C
	±0.015°C at 0.01°C	±0.015°C at 0.01°C	±0.015°C at 0.01°C	±0.006°C at 0.01°C
	±0.025°C at 160°C	±0.035°C at 420°C	±0.035°C at 420°C	±0.015°C at 420°C
			±0.05°C at 661°C	±0.025°C at 661°C
Drift	±0.01°C at TPW after 100 hours at 160°C	±0.01°C at TPW after 100 hours at 420°C	±0.01°C at TPW after 100 hours at 661°C	±0.004°C at TPW after 100 hours at 661°C
Short Term Stability	±0.007°C			±0.002°C
Thermal Shock	±0.005°C after (10) thermal cycles from minimum to maximum temperatures			±0.002°C after (10) thermal cycles from minimum to maximum temperatures
Hysteresis	<=0.005°C			<=0.001°C
Self-heating	50 mW/°C			0.0015°C at 0.5mA
Response Time	9 seconds for 63% response to step change in water moving at 3 feet per second
Measurement Current	0.5 mA or 1 mA
Sensor Length	32 mm			42 mm
Sensor Location	5 mm from tip
Insulation Resistance	>1000 MΩ at room temperature
Sheath Material	Stainless Steel	Inconeltm
Dimension	AM1710-12-ADT	AM1730-12-ADT	AM1751-12-ADT	AM1760-12-ADT
	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)

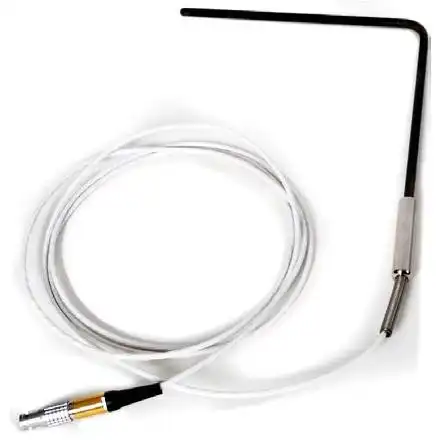

	AM1710-BEND-ADT	AM1730-BEND-ADT	AM1751-BEND-ADT	AM1760-BEND-ADT
	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 7.4 inch (190 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end
External Leads	Teflon™–insulated copper wire, 4 leads, 0.8 meters
Handle Dimension	15 mm (OD) x 65 mm (L)
Handle Temperature Range[1]	-50°C to 160°C	-50°C to 180°C
Calibration	NIST traceable calibration with data included. Accredited calibration available per request.
[1] Handle temperatures outside this range will cause damage to the probe.
[2] Includes calibration and 100 hour drift.
[3] Probe calibration ranges may differ from probe temperature ranges (see Calibrated Accuracy for calibration ranges).
*PRT Information from www.accumac.com

AM1612-ADT Secondary PRT Specifications
Temperature Range	-40°C to 160 °C
Resistance at 0 °C	Nominal 100 Ω
Temperature Coefficient	0.00385Ω/Ω /°C
Accuracy	±0.05°C at 0°C
Drift	±0.04°C at 0°C after 100 hours at 160°C
Short Term Stability	±0.02°C
Thermal Shock	±0.02°C after 10 times thermal cycles from minimum to maximum temperatures
Hysteresis	<= 0.01°C
Self-heating	75 mW/°C
Response Time	4 seconds for 63% response to step change in water moving at 3 feet per second
Measurement Current	1 mA
Internal Sensor Length	0.49" (15 mm)
Dimension	0.118" X 0.984" (3mm X 25mm)
Insulation Resistance	>1000 MΩ at room temperature
Sheath Material	Stainless Steel 316 L
Dimension	0.118 inch X 1.78 inch ( 3 mm X 45 mm )
External Leads	Enameled copper wire protected by high temperature heat shrink tubing, 4 leads, 0.8 meters
Calibration	NIST traceable calibration with data provided

Secondary PRT Information
Specification	AM1710 Series	AM1730 Series	AM1751 Series	AM1760 Series
Temperature Range [3]	-60°C to 160°C	-200°C to 420°C	-200°C to 670°C	-200°C to 670°C
Resistance at 0°C	Nominal 100Ω
Temperature Coefficient	0.003925 Ω / Ω / °C
Calibrated Accuracy (k=2)[2][3]	±0.025°C at -40°C	±0.025°C at -40°C	±0.025°C at -40°C	±0.010°C at -196°C
	±0.015°C at 0.01°C	±0.015°C at 0.01°C	±0.015°C at 0.01°C	±0.006°C at 0.01°C
	±0.025°C at 160°C	±0.035°C at 420°C	±0.035°C at 420°C	±0.015°C at 420°C
			±0.05°C at 661°C	±0.025°C at 661°C
Drift	±0.01°C at TPW after 100 hours at 160°C	±0.01°C at TPW after 100 hours at 420°C	±0.01°C at TPW after 100 hours at 661°C	±0.004°C at TPW after 100 hours at 661°C
Short Term Stability	±0.007°C			±0.002°C
Thermal Shock	±0.005°C after (10) thermal cycles from minimum to maximum temperatures			±0.002°C after (10) thermal cycles from minimum to maximum temperatures
Hysteresis	<=0.005°C			<=0.001°C
Self-heating	50 mW/°C			0.0015°C at 0.5mA
Response Time	9 seconds for 63% response to step change in water moving at 3 feet per second
Measurement Current	0.5 mA or 1 mA
Sensor Length	32 mm			42 mm
Sensor Location	5 mm from tip
Insulation Resistance	>1000 MΩ at room temperature
Sheath Material	Stainless Steel	Inconeltm
Dimension	AM1710-12-ADT	AM1730-12-ADT	AM1751-12-ADT	AM1760-12-ADT
	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)
	AM1710-BEND-ADT	AM1730-BEND-ADT	AM1751-BEND-ADT	AM1760-BEND-ADT
	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 7.4 inch (190 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end
External Leads	Teflontm –insulated copper wire, 4 leads, 0.8 meters
Handle Dimension	15 mm (OD) x 65 mm (L)
Handle Temperature Range[1]	-50°C to 160°C	-50°C to 180°C
Calibration	NIST traceable calibration with data included. Accredited calibration available per request.
[1] Handle temperatures outside this range will cause damage to the probe.
[2] Includes calibration and 100 hour drift.
[3] Probe calibration ranges may differ from probe temperature ranges (see Calibrated Accuracy for calibration ranges).
*PRT Information from www.accumac.com

Choose Your Own Range (Optional)
Model	Description
9875-155-CYOR	Range selection for ADT875- 155 Dry Well Calibrator, Customize Range
9875-350-CYOR	Range selection for ADT875- 350 Dry Well Calibrator, Customize Range
9875-660-CYOR	Range selection for ADT875- 660 Dry Well Calibrator, Customize Range

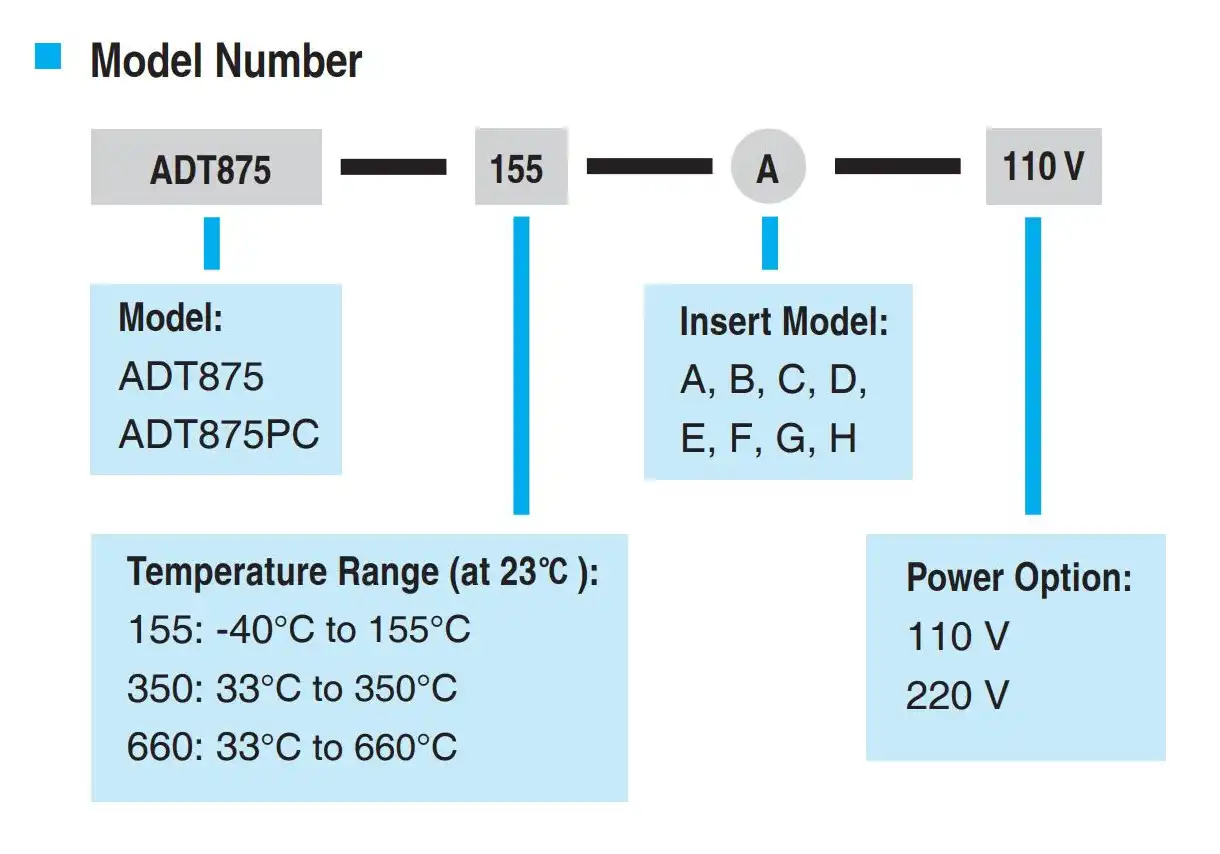

Standard Accessories
Dry well and selected insert	1 pc.
Power cable	1 pc.
USB Cable	1 pc.
Insert removal tool	1 pc.
Thermal Shield (ADT875/PC-350/660 only)	1 pc.
Silica gel plug (ADT875/PC-155 only) 1	1 set (3 pcs.)
Insulation plug (ADT875/PC-155 only)	1 pc.
Test leads (ADT875PC only)	2 sets (4 pcs.)
ISO 17025 Accredited calibration	1 pc.
CD Manual	1 pc.

Optional Accessories
9915-875	Carry Case for ADT875- 155/350/660 with wheels

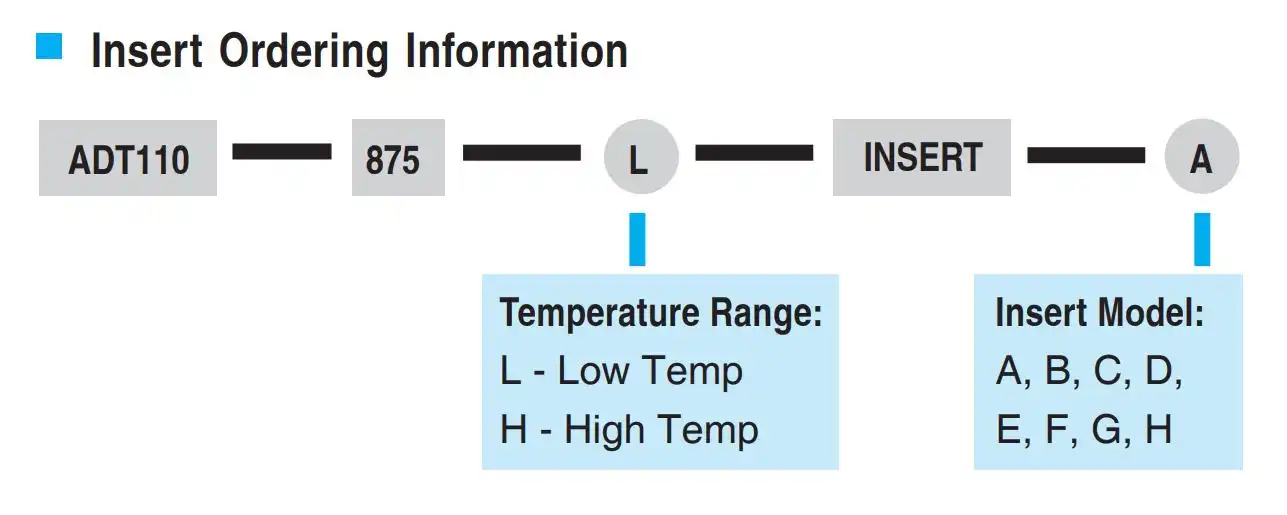

ADT110-875-X-INSERT-X	Insert for ADT875, see insert ordering information on the next page

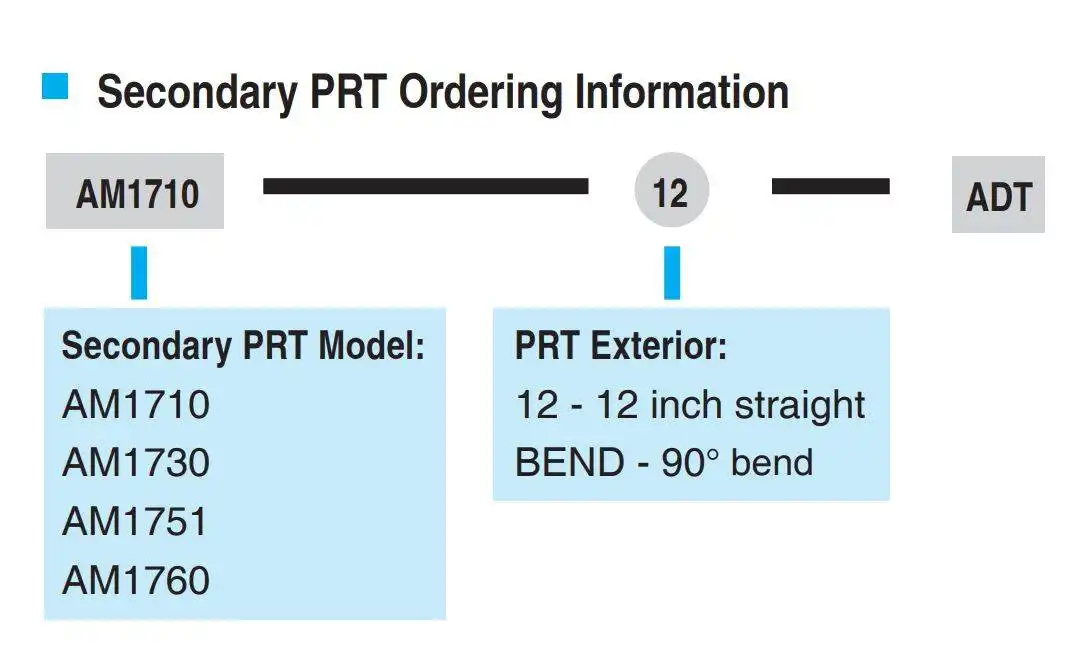

AM17XX-12-ADT	Secondary PRT with dry well connector, see PRT information on the next page
AM17XX-BEND-ADT	Bend Secondary PRT with dry well connector, see PRT information on the next page
9070	Smart connector for reference PRT used with ADT875 Dry Well Calibrator
9071	Connector Adapter from smart connector to 4-wire with goldplated spades for ADT875 Dry Well Calibrator
9072	Smart connector with clamps for reference PRT used with ADT875 Dry Well Calibrator
9080	Cable Kit (includes TC plug, compensation cable, S,R,B,K,J,T,E,N)

Insert Information
A
B
C
D
E
F
G
H
Z

Optional Accessories
ADT110-875-L-SHRT-Z	Spare Blank Insert
ADT110-878-L-SHRT-D	Spare Blank Insert
AM1612-ADT	Spare Short Style Secondary Reference Probe

Insert Types
3 mm dia.
4 mm dia.
6 mm dia.
1/8 in dia.
3/16 in dia.
1/4 in dia.

875-155

The 875-155 features temperature control from -40°C to 155°C and a display accuracy of ±0.18°C at Full Range. It can also be purchased with the Additel 110 series short probe calibration kit, designed to help users calibrate temperature probes and transmitters with short probe lengths.

875-350

The 875-350 features temperature control from 33°C to 350°C and a display accuracy of ±0.2°C at Full Range.

875-660

The 875-660 features temperature control from 33°C to 660°C and a display accuracy up to ±0.3°C.

Documents and Links
Additel 875 Dry Well Calibrator Datasheet
Additel 875 Dry Well Calibrator User Manual
Additel Hart Communication Manual
Additel Short Probe Temperature Calibration Kit Datasheet

Videos
ADT875 - Introduction Video
ADT875 - Self Calibration Video
Additel Short Probe Kit Video

Specification	875 Display / Picture (Image 1)	875 Display / Picture (Image 2)
Task
mA Measurement
V Measurement
Auto Step
Remote Control

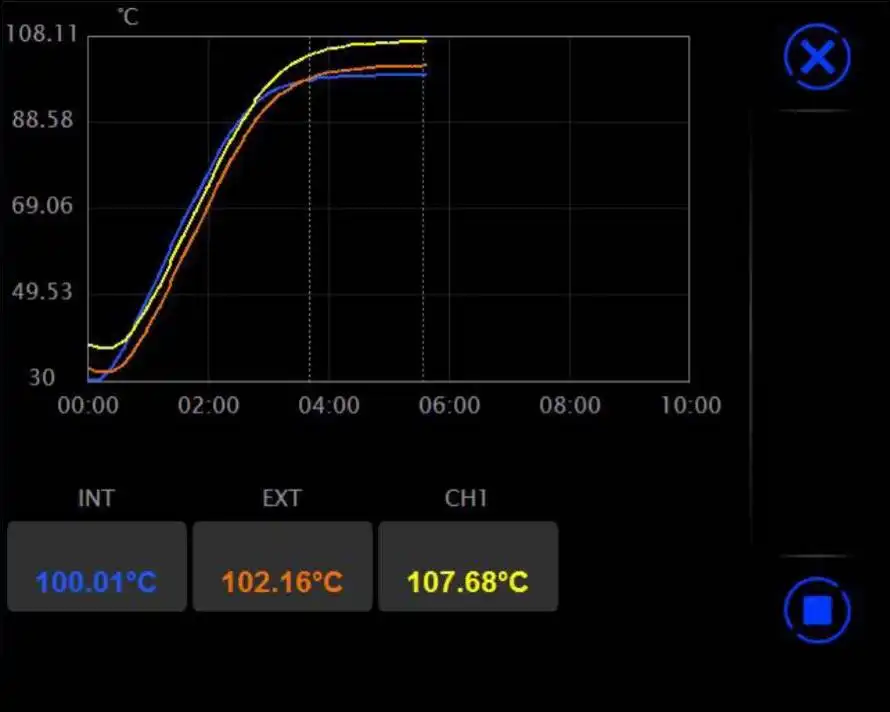

Data Logging
Stability Indicator
Connection Instruction
PRT Test (External Reference)
RTD Test
TC Test
Transmitter Test
Switch Test

Standard Accessories
Model	Quantity	Picture
Dry well and selected insert	1 pc.
Power cable	1 pc.
USB Cable	1 pc.
Insert removal tool	1 pc.
Thermal Shield (ADT875/PC-350/660 only)	1 pc.
Silica gel plug (ADT875/PC-155 only) 1	1 set (3 pcs.)
Insulation plug (ADT875/PC-155 only)	1 pc.
Test leads (ADT875PC only)	2 sets (4 pcs.)
ISO 17025 Accredited calibration	1 pc.
CD Manual	1 pc.

Optional Accessories
Model Number	Description	Product Picture
ADT110-875-L-SHRT-Z	Spare Blank Insert
ADT110-878-L-SHRT-D	Spare Blank Insert
AM1612-ADT	Spare Short Style Secondary Reference Probe

Insert Types
Type	Product Picture
3 mm dia.
4 mm dia.
6 mm dia.
1/8 in dia.
3/16 in dia.
1/4 in dia.

Additel 875

Dry Well Calibrator

Cookies
