ADT104
1/4HP male (Autoclave M-250-C) to various connectors as follows (17pcs, case included)
(Designed for Additel 949 and Additel 959 pumps)
Model | Description | Max Pressure | Picture of Adapter |
---|---|---|---|

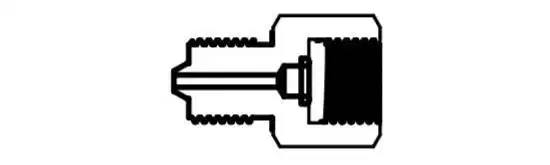

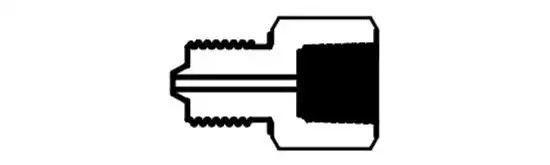

ADT100-HPM-M14F | Adapter, 1/4HP male to M14X1.5 female | 15,000 psi | |
ADT100-HPM-M20F | Adapter, 1/4HP male to M20X1.5 female | 15,000 psi | |
ADT100-HPM-BSPF4 | Adapter, 1/4HP male to 1/4BSP female | 15,000 psi | |
ADT100-HPM-BSPF3 | Adapter, 1/4HP male to 3/8BSP female | 15,000 psi | |
ADT100-HPM-BSPF2 | Adapter, 1/4HP male to 1/2BSP female | 15,000 psi | |
ADT100-HPM-NPTF4 | Adapter, 1/4HP male to 1/4NPT female | 15,000 psi | |
ADT100-HPM-NPTF2 | Adapter, 1/4HP male to 1/2NPT female | 15,000 psi | |

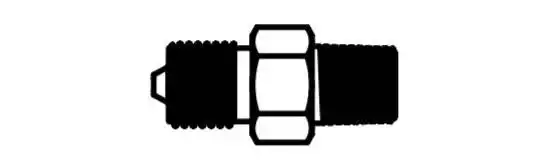

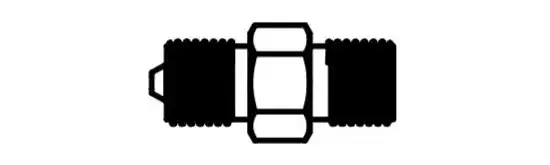

ADT100-HPM-M14M | Adapter, 1/4HP male to M14X1.5 male | 40,000 psi | |
ADT100-HPM-M20M | Adapter, 1/4HP male to M20X1.5 male | 40,000 psi | |
ADT100-HPM-BSPM4 | Adapter, 1/4HP male to 1/4BSP male | 15,000 psi | |
ADT100-HPM-BSPM3 | Adapter, 1/4HP male to 3/8BSP male | 40,000 psi | |
ADT100-HPM-BSPM2 | Adapter, 1/4HP male to 1/2BSP male | 40,000 psi | |
ADT100-HPM-NPTM4 | Adapter, 1/4HP male to 1/4NPT male | 15,000 psi | |
ADT100-HPM-NPTM2 | Adapter, 1/4HP male to 1/2NPT male | 15,000 psi | |

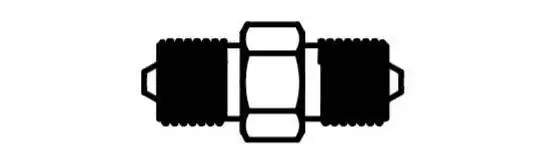

ADT100-HPM-HPM | Adapter, 1/4HP male to 1/4HP male (3 pcs) | 60,000 psi |
Don't need the entire kit? Order individual adapters with the above part numbers
